Sending WhatsApp Messages via Webhooks (Klaviyo → KwikEngage)

What you’ll do (high level)

1. Create a WhatsApp template in KwikEngage

2. Create a Klaviyo Automation inside KwikEngage to get the Webhook URL + JSON payload

3. Build a Klaviyo flow with your trigger (e.g., Added to Cart)

4. Add a 15-minute delay

5. Add a Webhook step pointing to KwikEngage

6. Paste & map the JSON (replace placeholders with Klaviyo variables)

7. Test, validate, and launch

Prerequisites

• Admin access to Klaviyo and KwikEngage

• WhatsApp channel enabled in KwikEngage

• A pre-approved WhatsApp template (or create one in Step 1)

• Profiles have valid WhatsApp consent + E.164 phone numbers

Step-by-Step

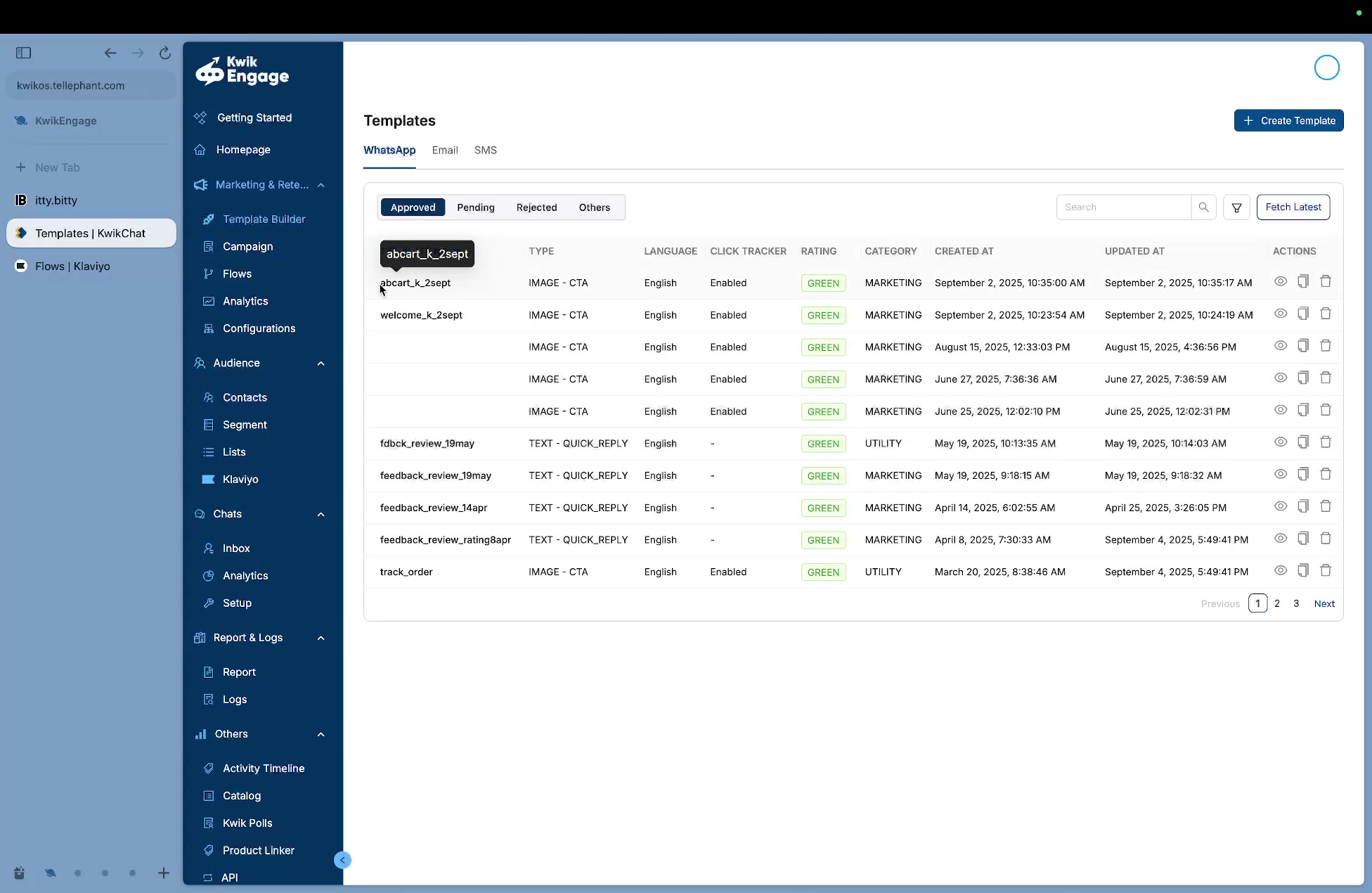

1) Check the WhatsApp Template (KwikEngage)

1. Go to KwikEngage → Template Builder → WhatsApp.

2. Create/open your template (e.g., abcart_k_2sept).

3. Check the placeholders for: first name, product name, image URL, destination URL.

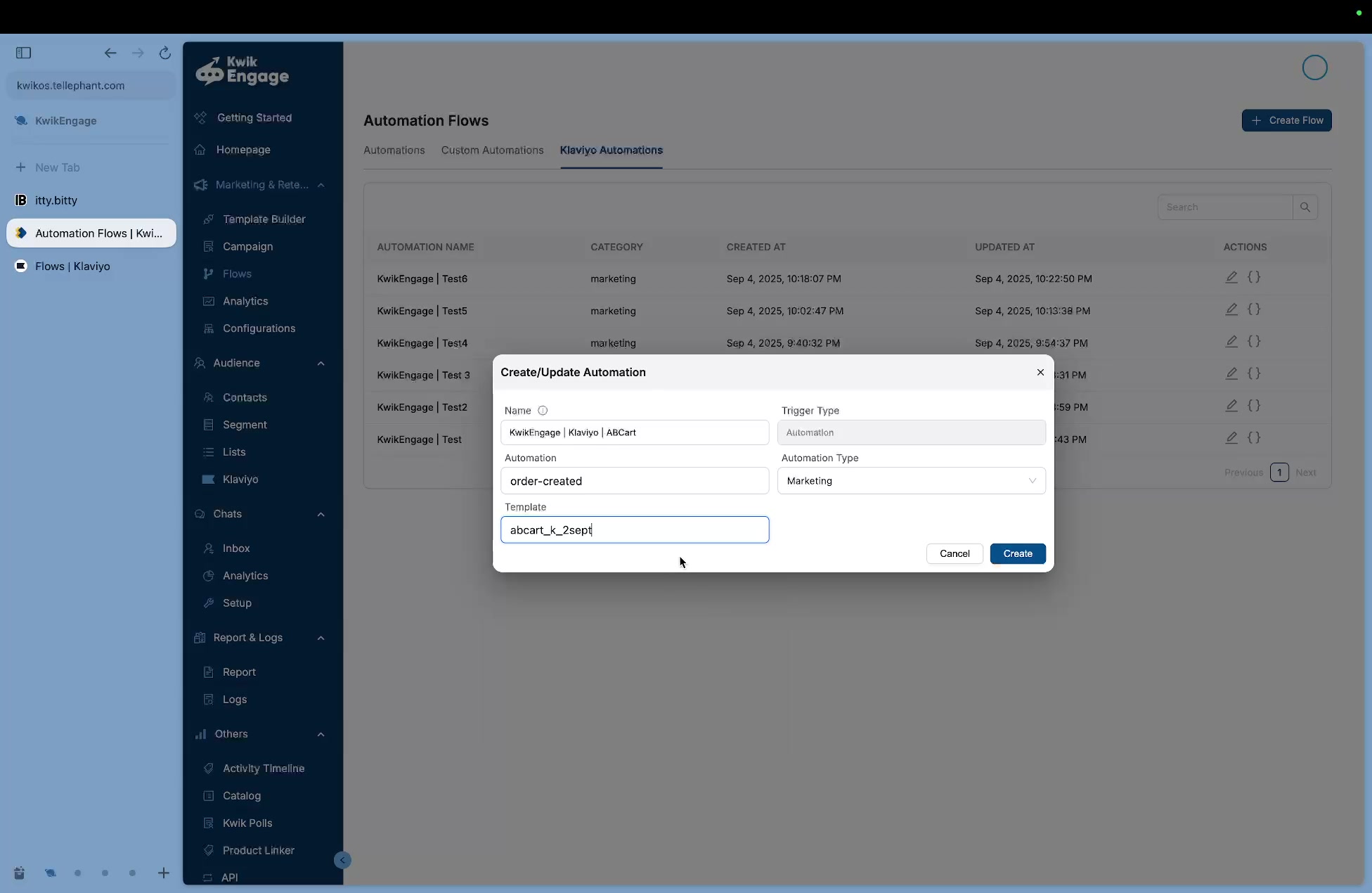

2) Create a Klaviyo Automation inside KwikEngage (to get URL + JSON)

1. Go to KwikEngage → Flows → Klaviyo Automations → Create Flow.

2. Name: KwikEngage | Klaviyo | ABCart (or your naming convention).

3. Automation (metric): pick the conversion event you’ll wire later (Order Created).

4. Automation Type: marketing.

5. Template: select the WhatsApp template from Step 1.


3) Build the Flow in Klaviyo

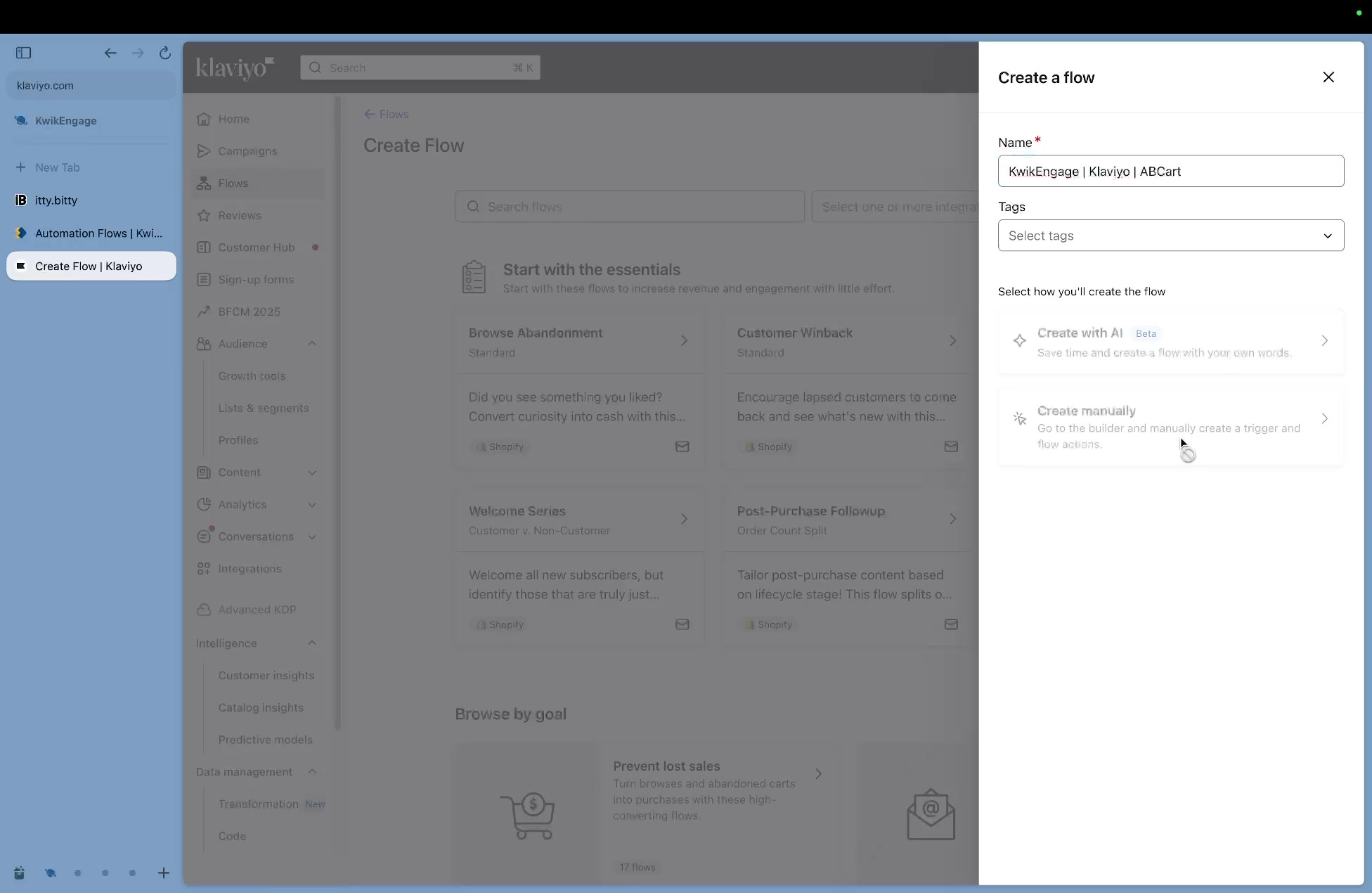

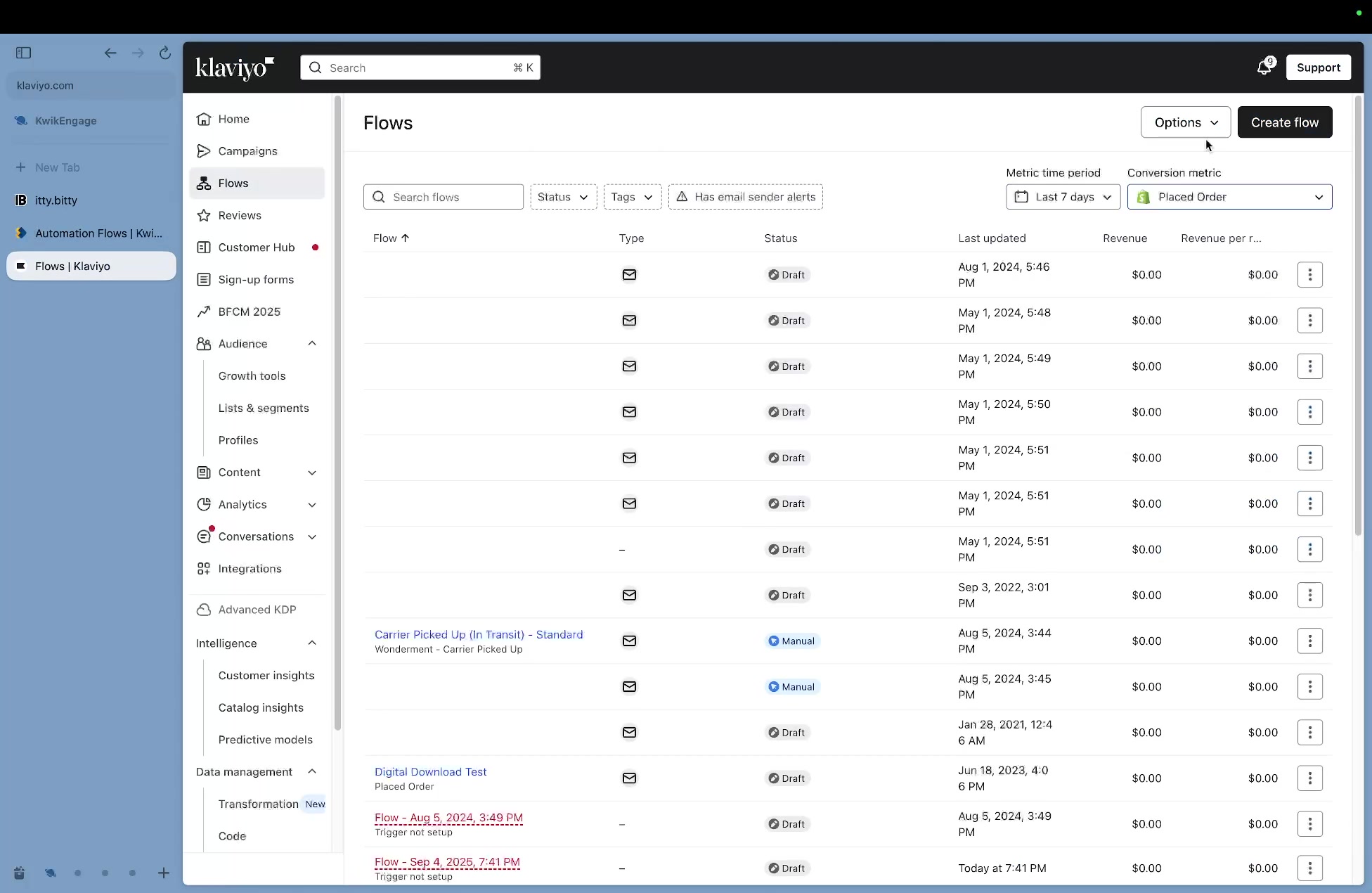

1. In Klaviyo → Flows → Create flow → Create manually.

2. Name: KwikEngage | Klaviyo | ABCart.

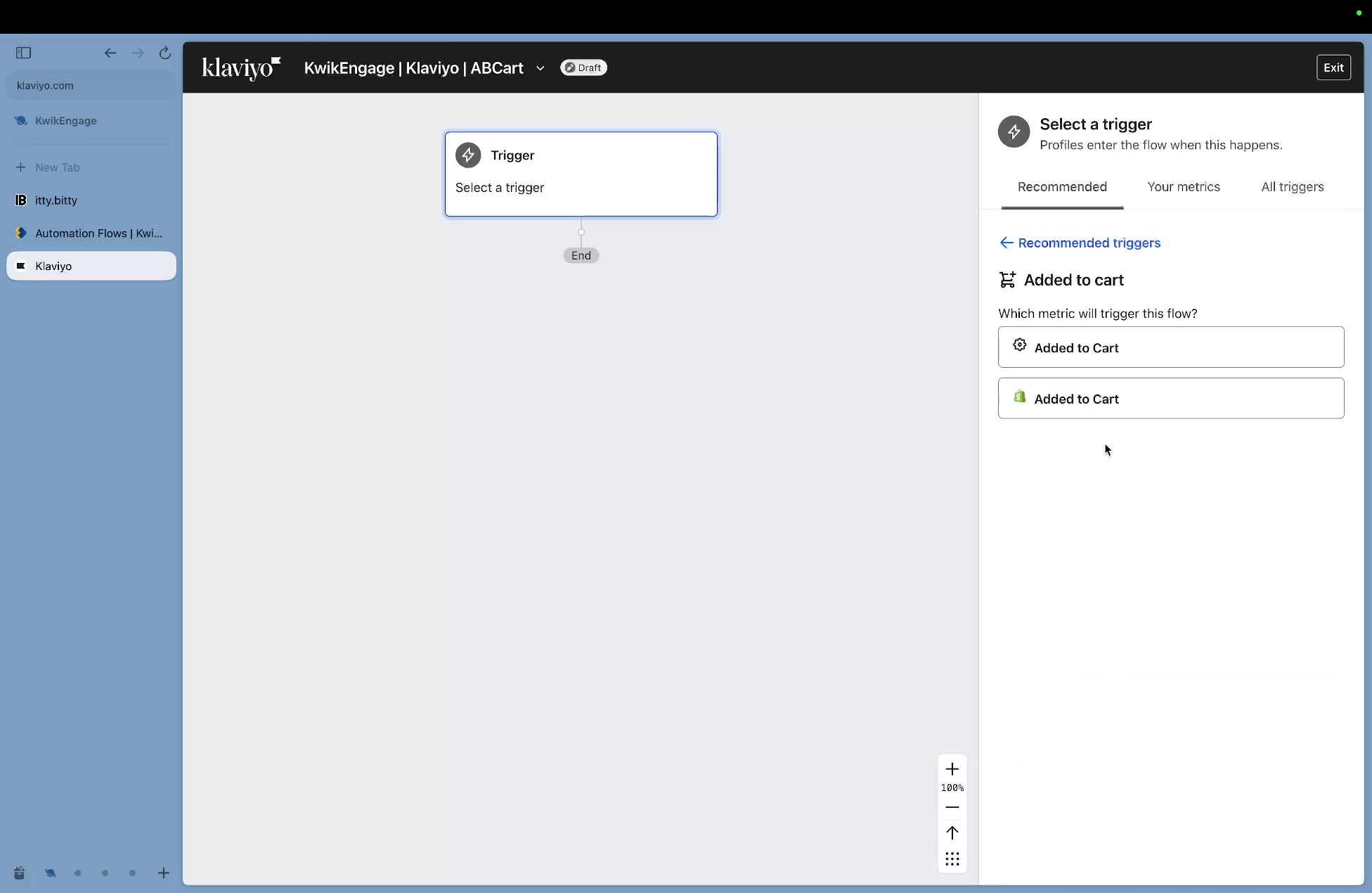

3. Trigger: select your event.

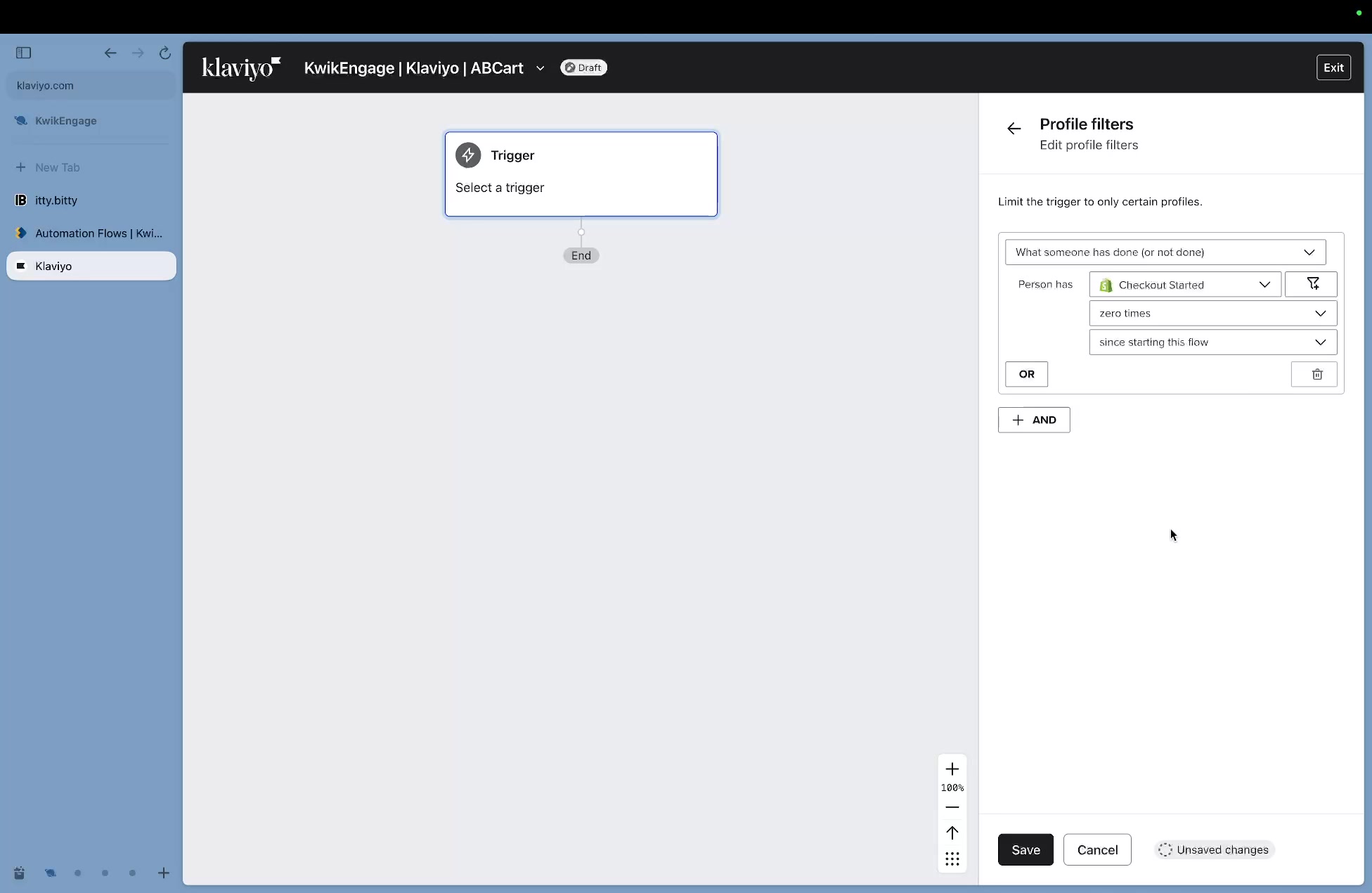

4. Profile filter to exclude recent purchasers/checkout started.

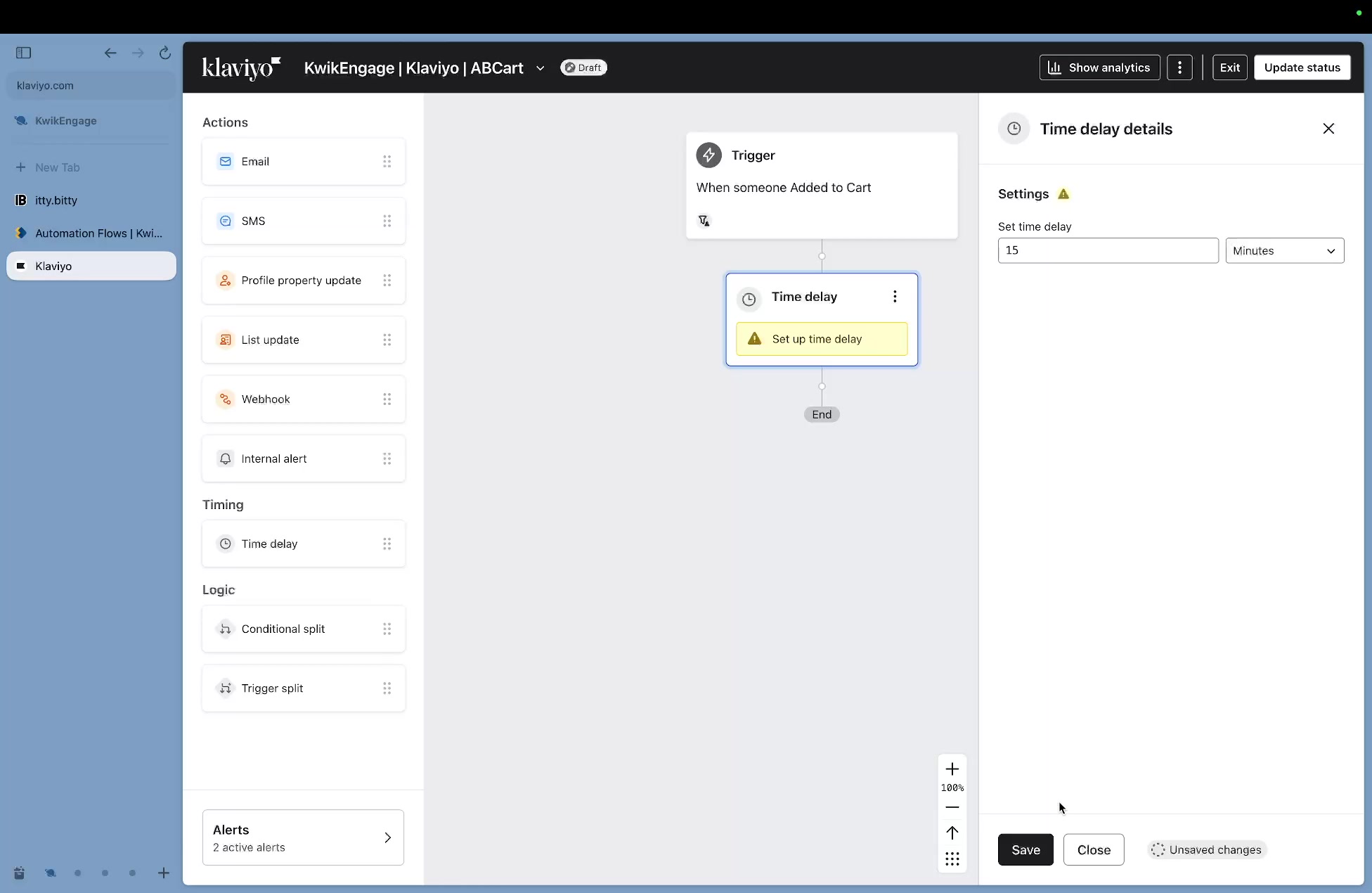

4) Add a Time Delay (Klaviyo)

1. Drag Time delay under the trigger.

2. Set to 15 minutes (Minutes, not Days/Hours).

   • This avoids instant messages and gives users a chance to complete checkout.

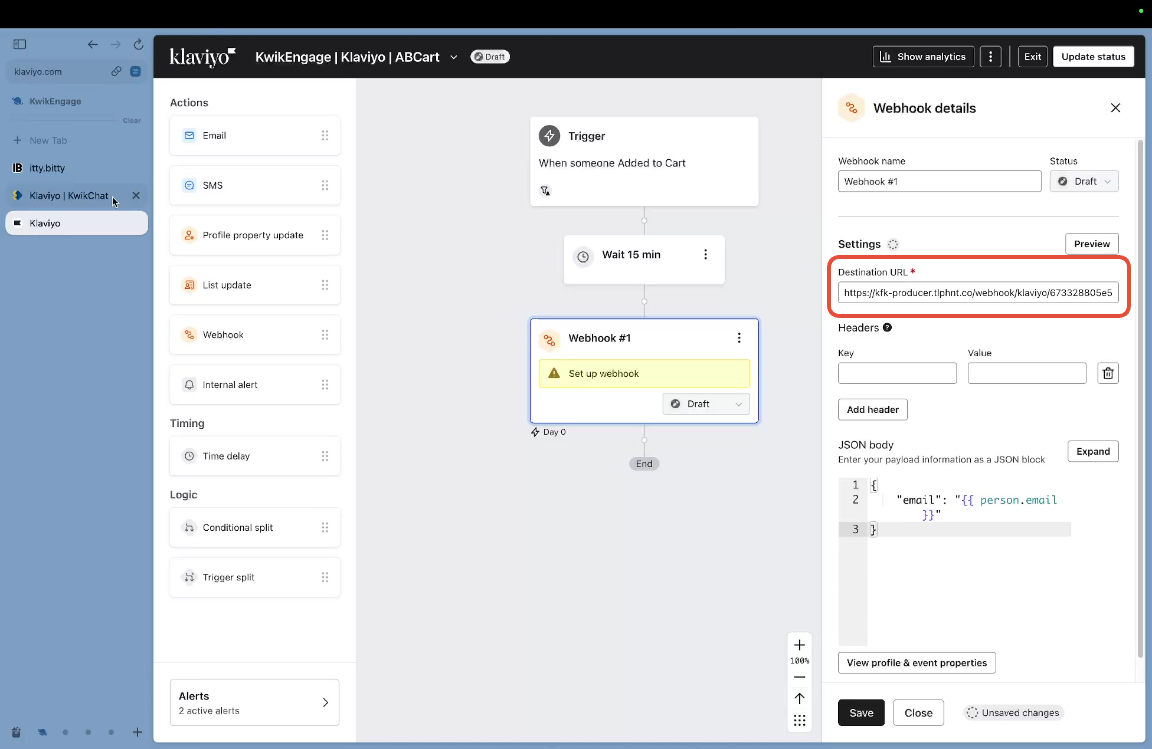

5) Add the Webhook Step (Klaviyo)

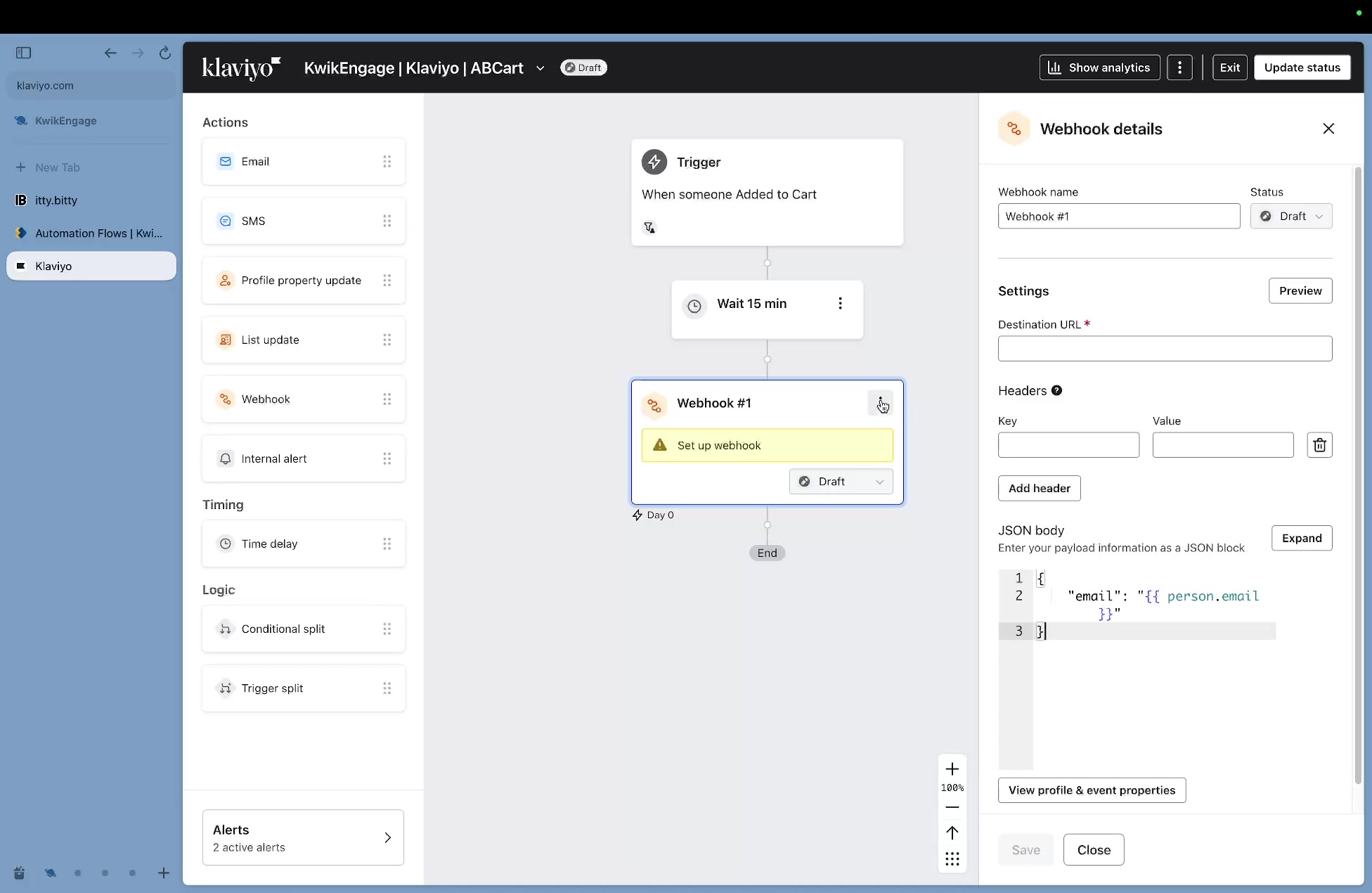

1. Drag Webhook under the delay.

2. Destination URL

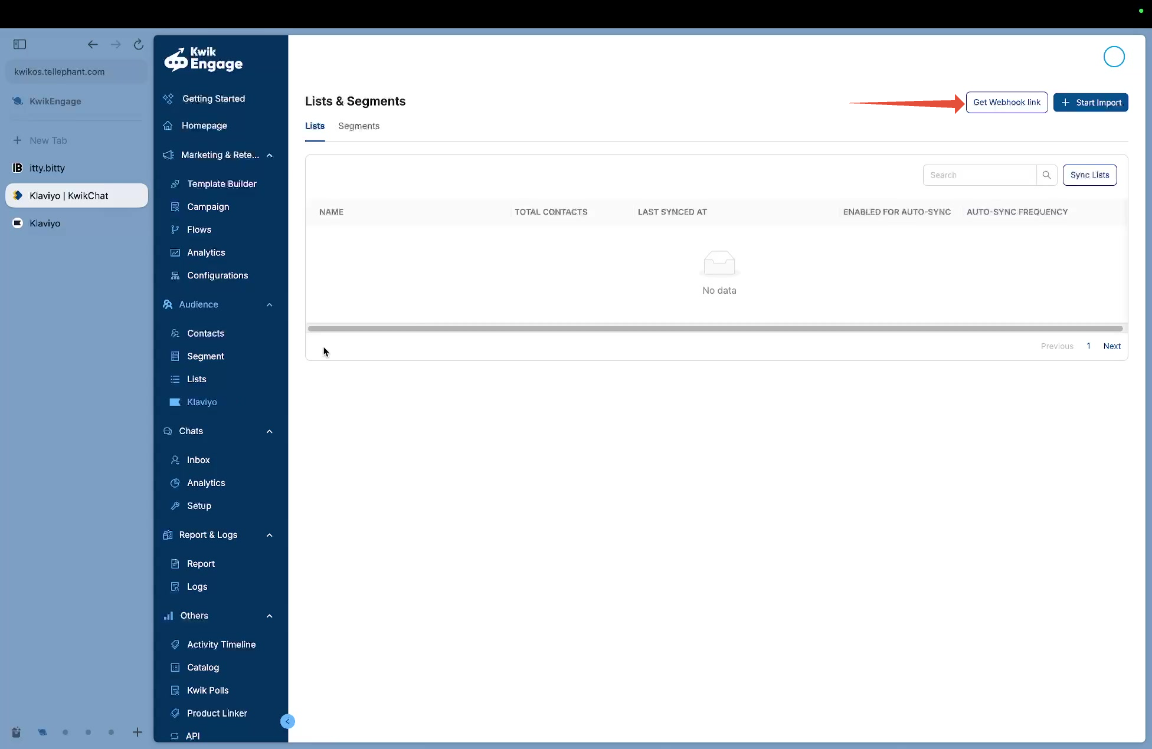

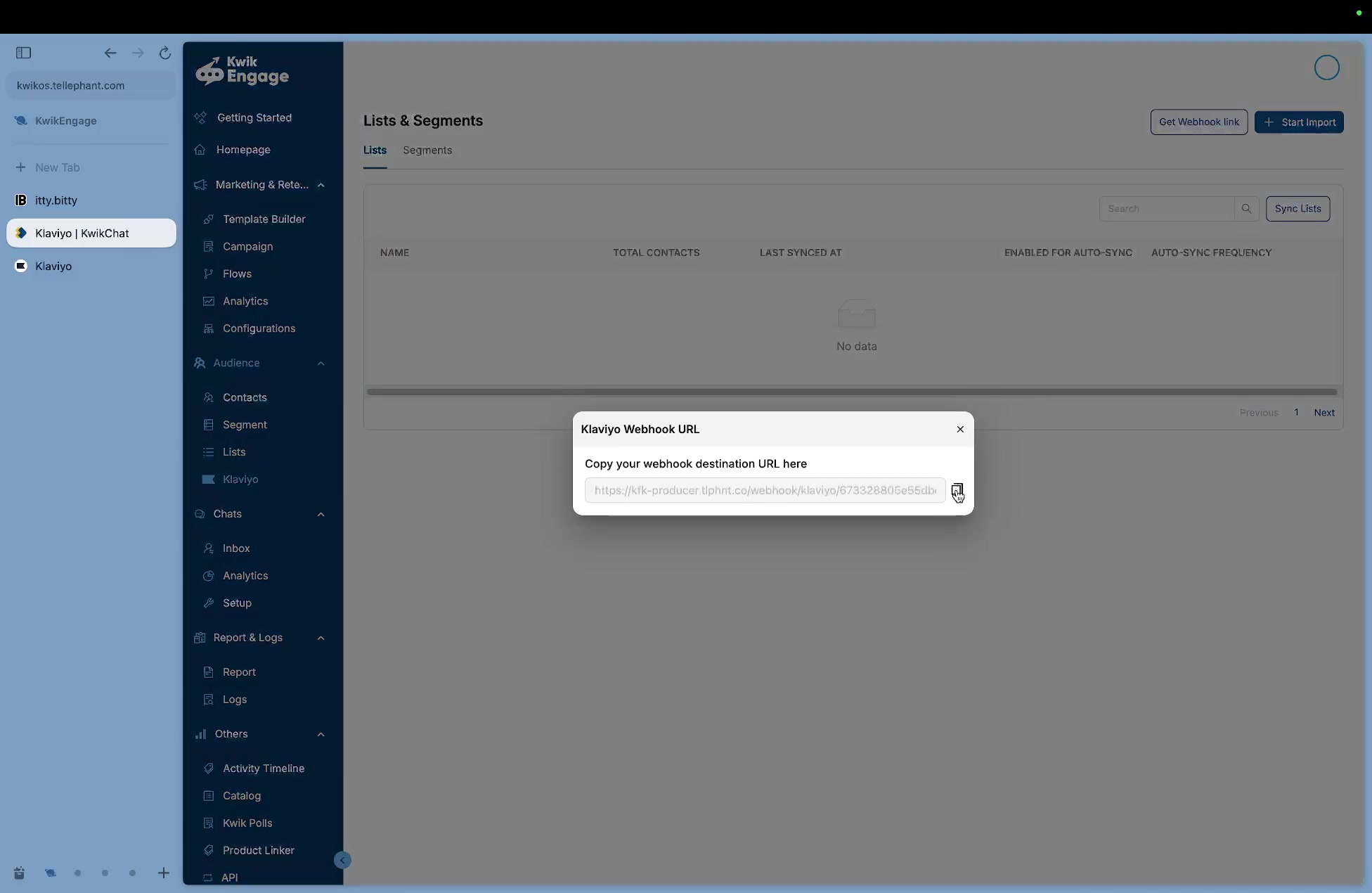

   • Go to the Klaviyo settings page and click 'Get Webhook link'

     • Copy the generated Webhook URL.

   • Go to Flows -> Klaviyo Automations

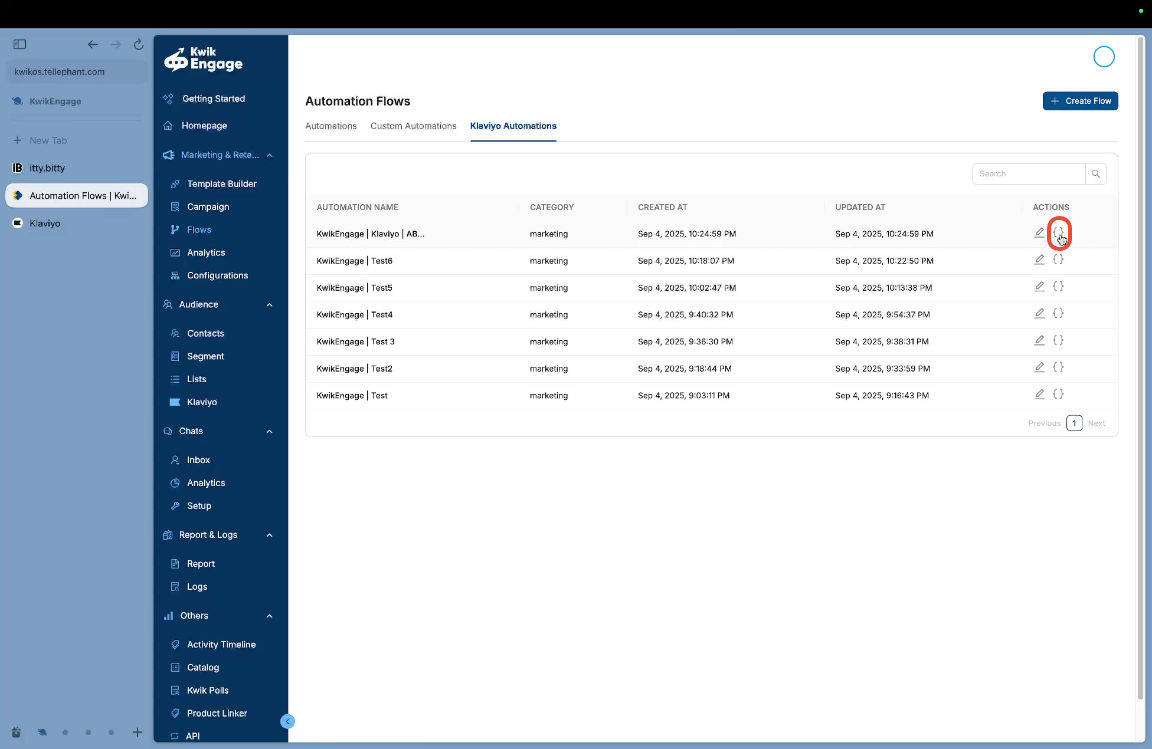

     • Click the {} button on the automation you are creating for

     • Click Copy Template Payload to grab the JSON (contains template + components + meta)

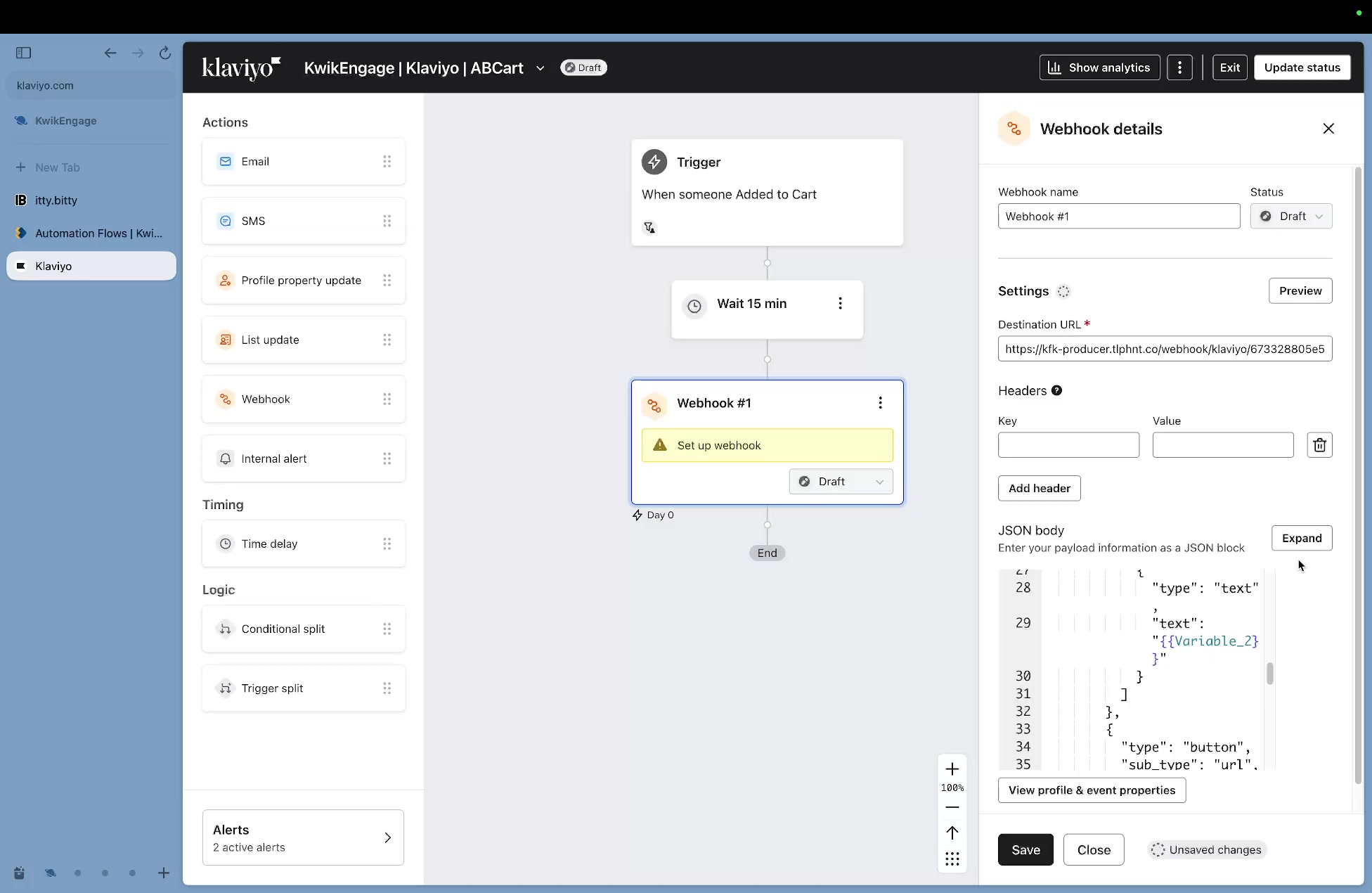

3. JSON body: paste the JSON payload copied in Step 2 and click Expand to edit.

6) Map Placeholders to Klaviyo Variables

Use Profile props for identity; Event props for context.

Common mappings (examples—match to your schema):

• Header image URL → {{ event.ImageURL }}

• Body variable 1 (first name) → {{ person.first_name|default:'' }}

• Body variable 2 (product name) → {{ event.ProductName }}

• Recipient “to” → {{ person.phone_number }} (must be E.164)

• meta_data.destination_urls[0] → {{ event.URL|default:'' }} (product or cart URL)

Tips

• Use View profile & event properties in the Webhook panel to open Preview Profile Info and confirm exact field names present on your trigger.

• Add |default:'' to avoid nulls breaking JSON.

• Keep field names in your JSON aligned with your KwikEngage template variables.

7) Test & Launch

1. Use a test profile with valid phone + WhatsApp consent.

2. Trigger the chosen event (e.g., add item to cart).

3. Wait 15+ minutes (delay).

4. In Klaviyo, check the Webhook step status

5. In KwikEngage, verify the payload arrived and the WhatsApp template sent.

6. Set the flow Live.

Troubleshooting (quick checks)

• Webhook not firing: Flow/step enabled, URL correct, JSON valid, Content-Type header present.

• Missing values: Correct profile vs event tokens; confirm the event actually carries those fields.

• No WhatsApp send: Template must be approved/active; phone must be E.164; user must have WhatsApp consent.

• Wrong recipients: Recheck trigger and exclusion filters.

• Delay wrong: Make sure it’s 15 Minutes (not 15 Days/Hours).

Best Practices

• Consistent naming across both tools (flows, automations, templates).

• Consent enforcement at segment/flow level.

• Start small (test cohort), then scale.

• Monitor both ends: Klaviyo Webhook success rate + KwikEngage delivery metrics.

• Document mappings (a short table) next to your JSON for future edits.
