How to setup Automation flows on KwikEngage Panel?

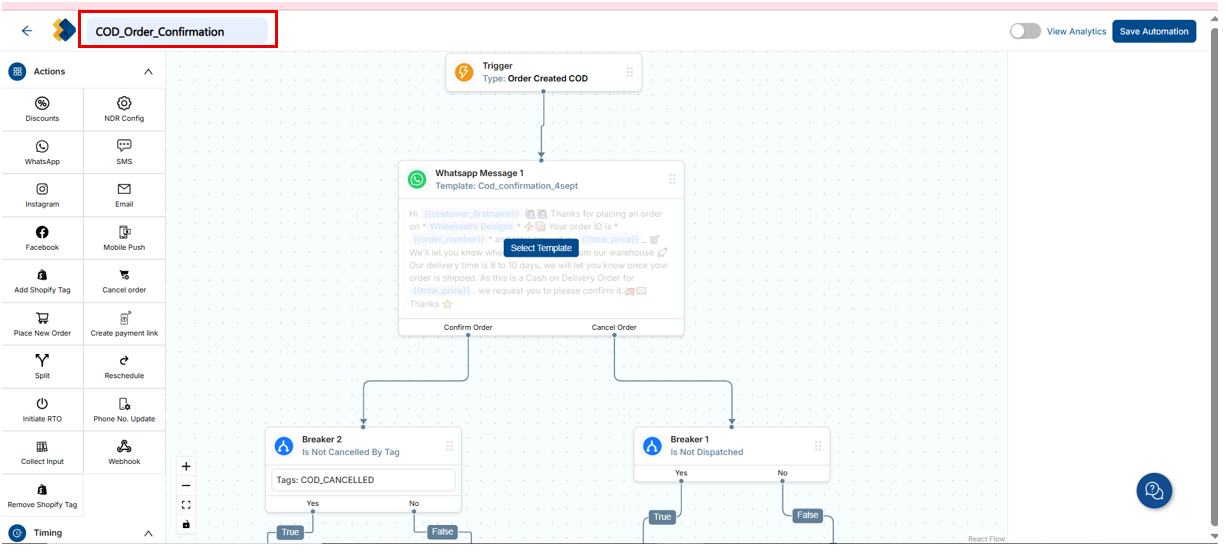

A. COD Order Confirmation

You can set up two types of COD confirmation flows:

• With direct cancellation on Shopify

• Without direct cancellation on Shopify

Steps:

1. Login: kwikos.tellephant.com

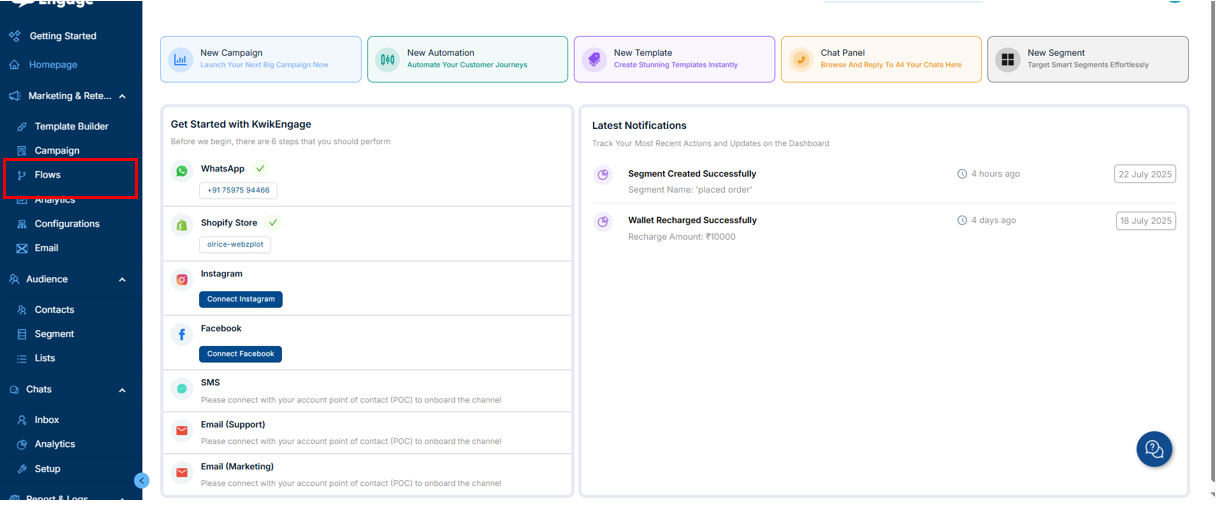

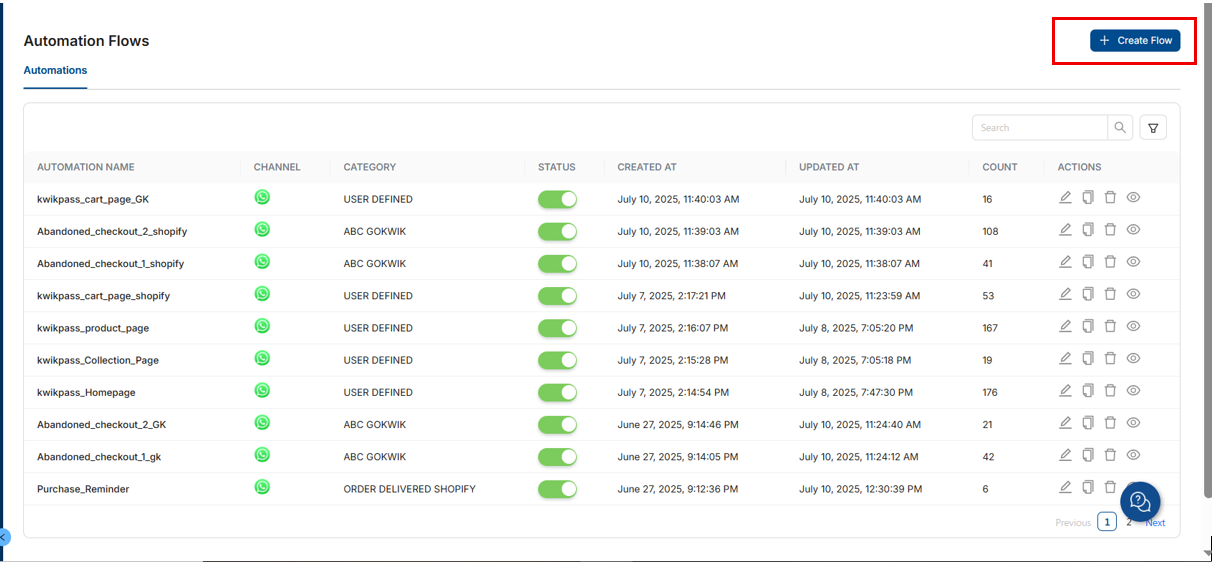

2. Go to Flows > click Create Flow

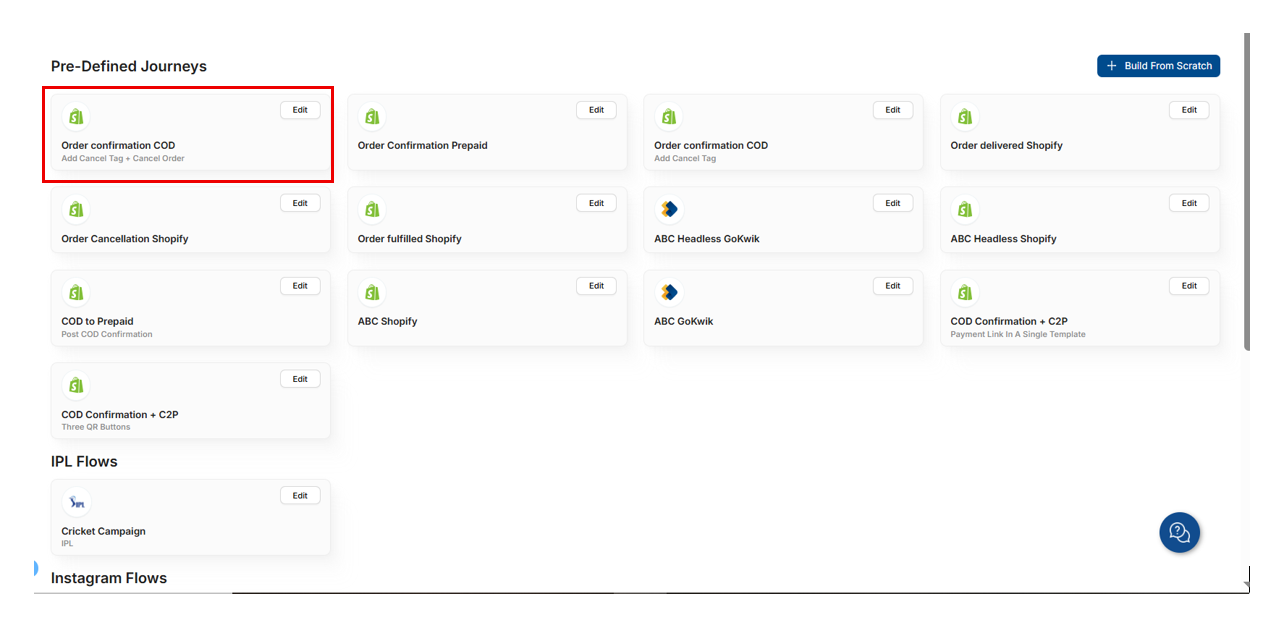

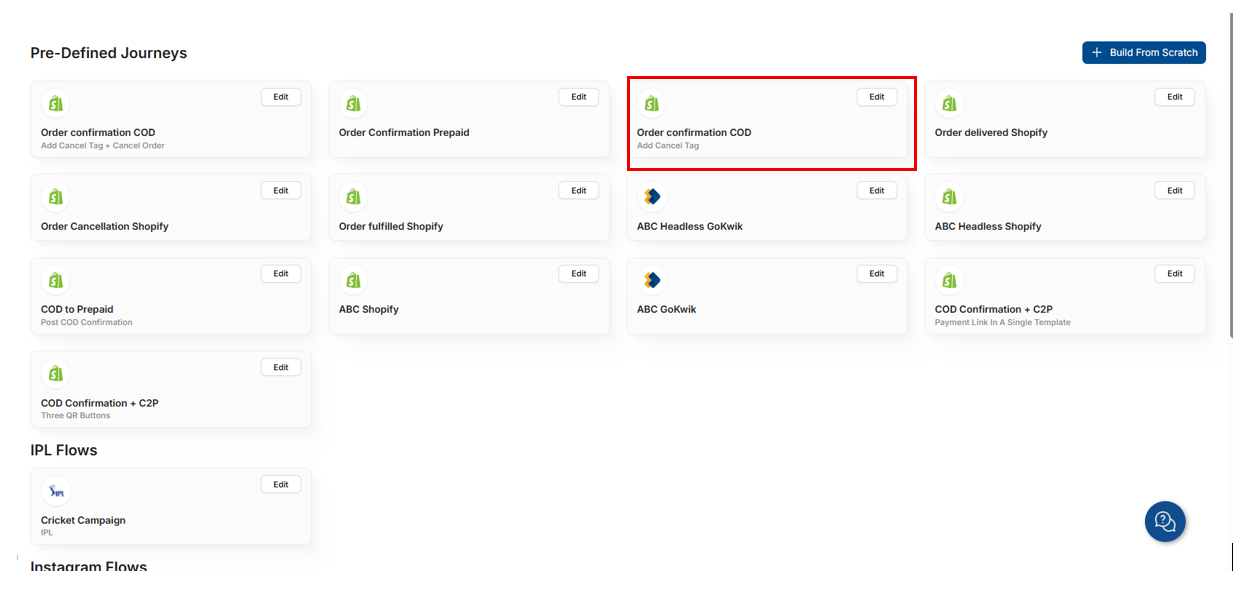

3. Choose:

   • COD Order confirmation with direct cancellation on shopify ( With a TAG)



   • COD Order Confirmation without direct cancellation on shopify (With a TAG)

4. Click the selected flow to open and edit it.

5. Add a name for your flow on the left.

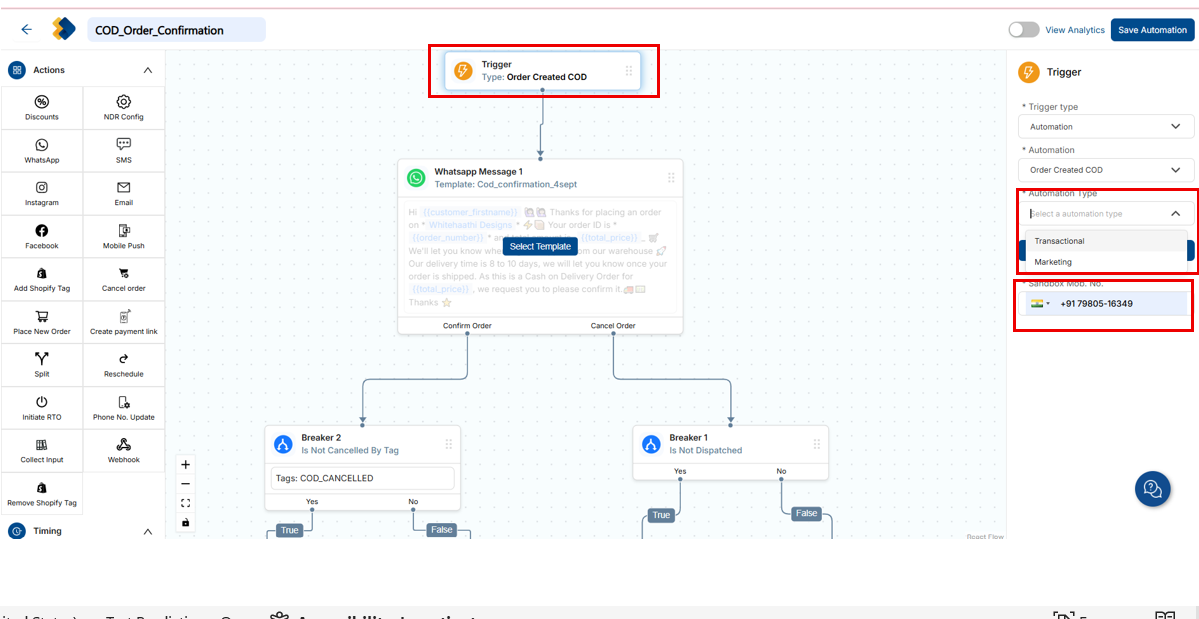

6. Click the Trigger block, set:

   • Automation type: Transactional

   • Add your test number (sandbox)

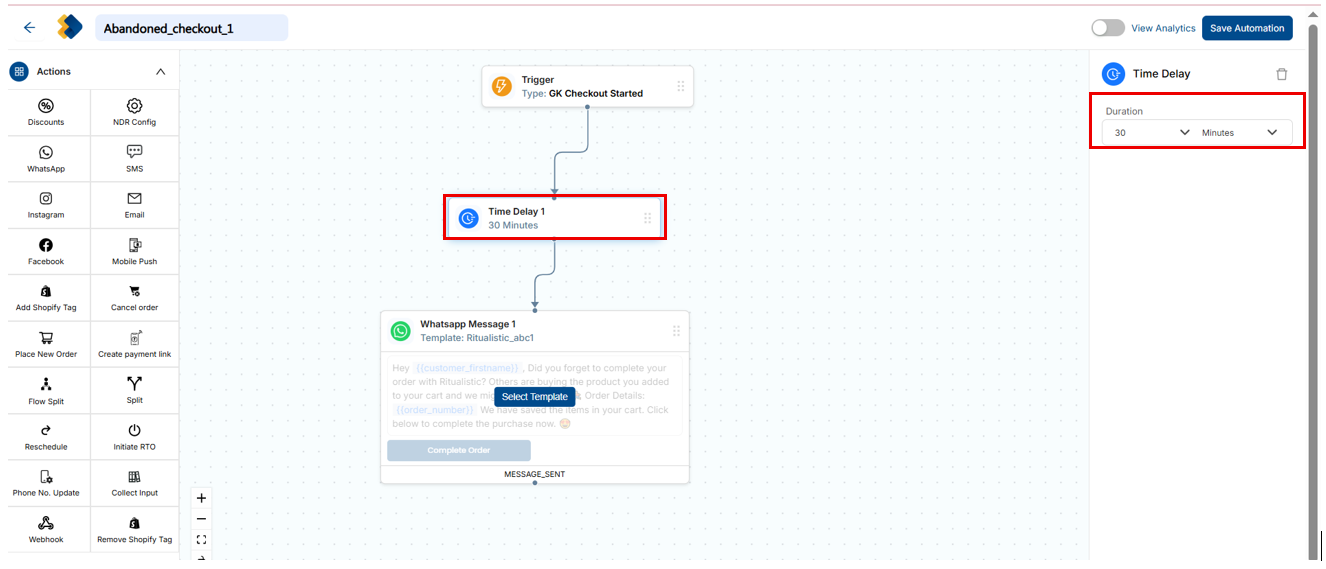

7. (Optional) Add a Time Delay or Breaker from the left panel.

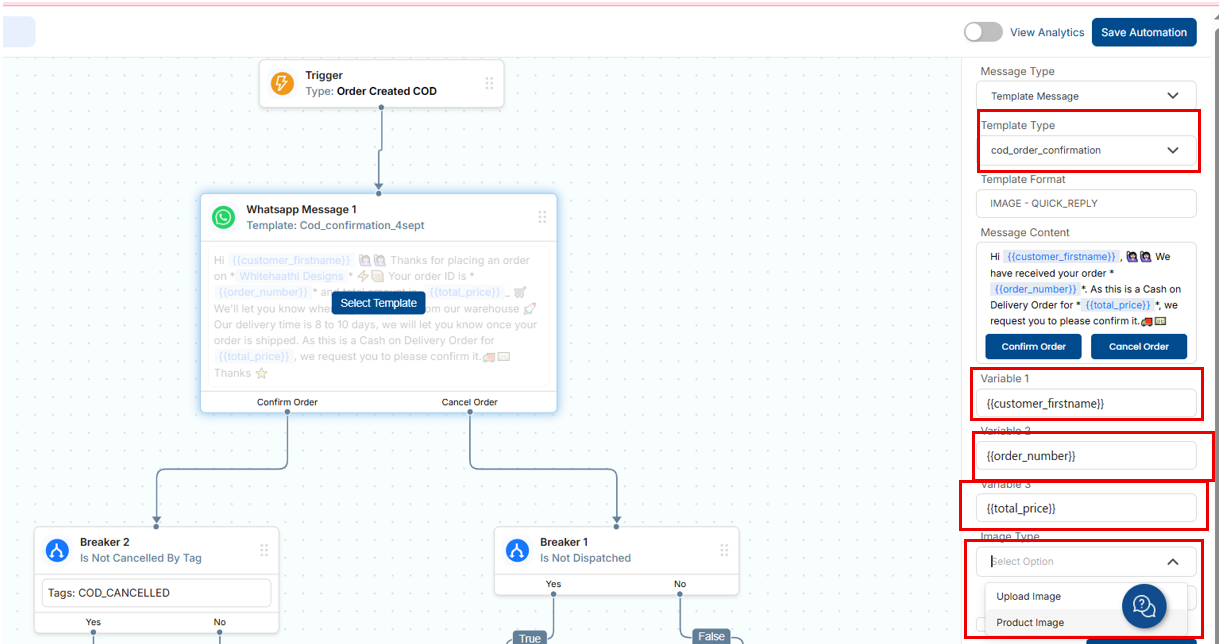

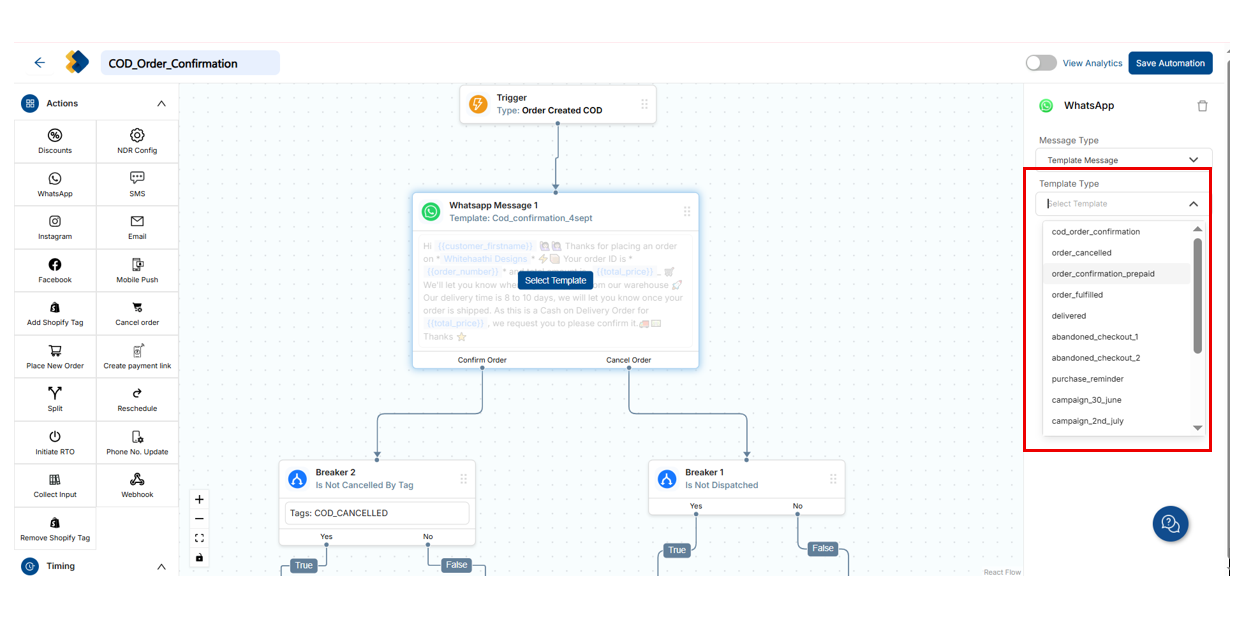

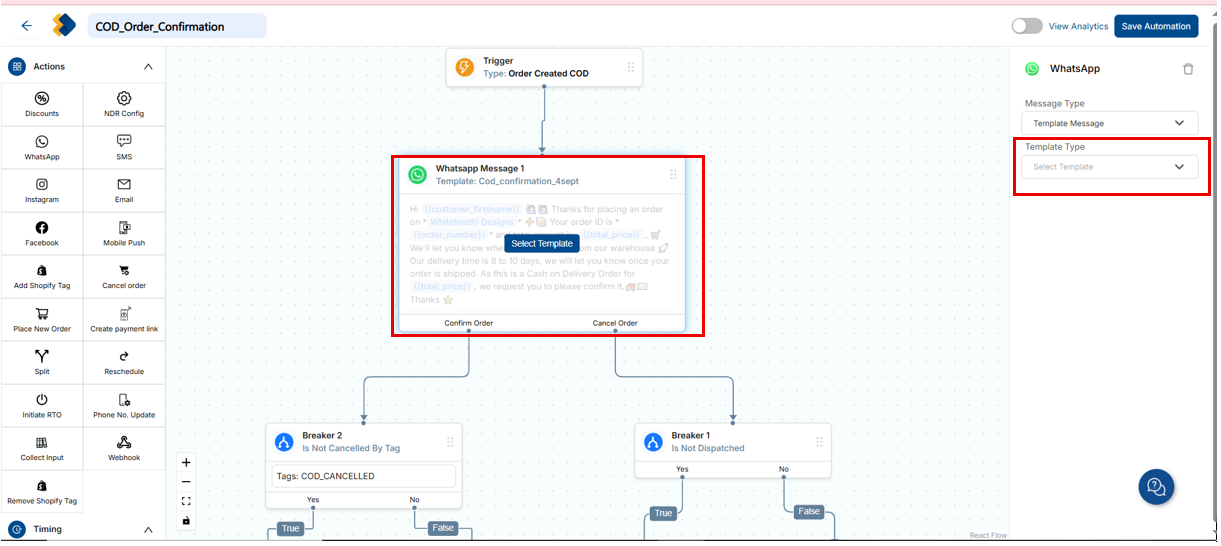

8. Click the WhatsApp block and:

   • Select an approved COD Confirmation template



   • Choose the right variables: Customer_name, Order_number, etc.

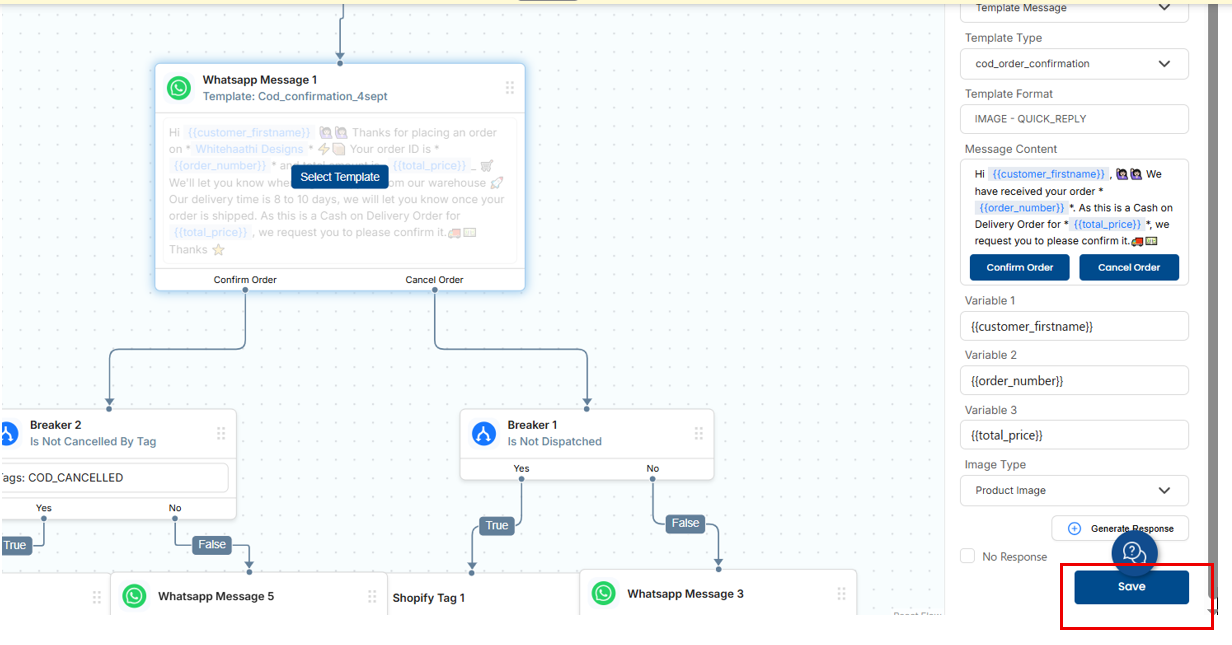

9. Click Save at the bottom.

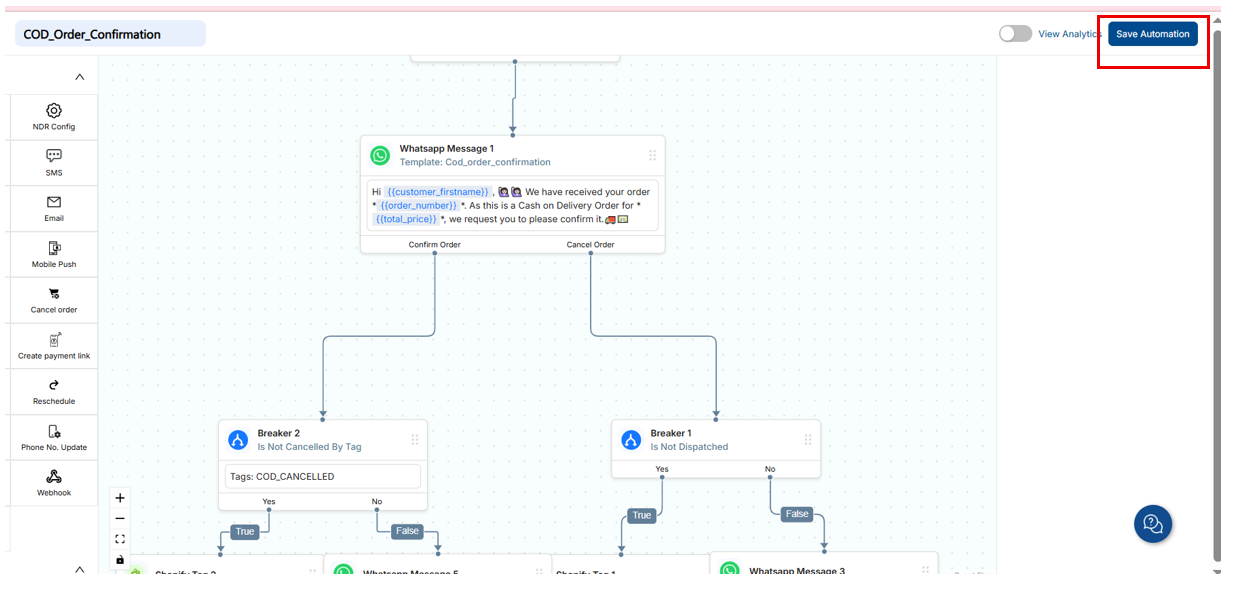

10. Click Save Automation at the top-right to save the full flow.


11. Your flow will be in testing mode by default (messages go only to your test number).

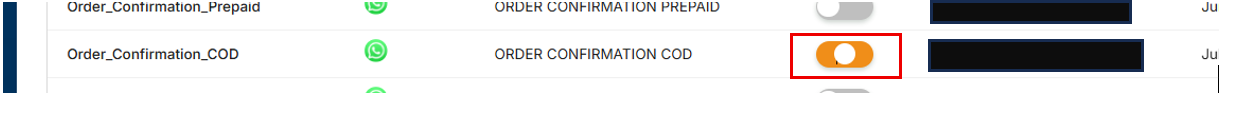

Flow Modes
? Off = Disabled
? Orange = Testing
? Green = LIVE

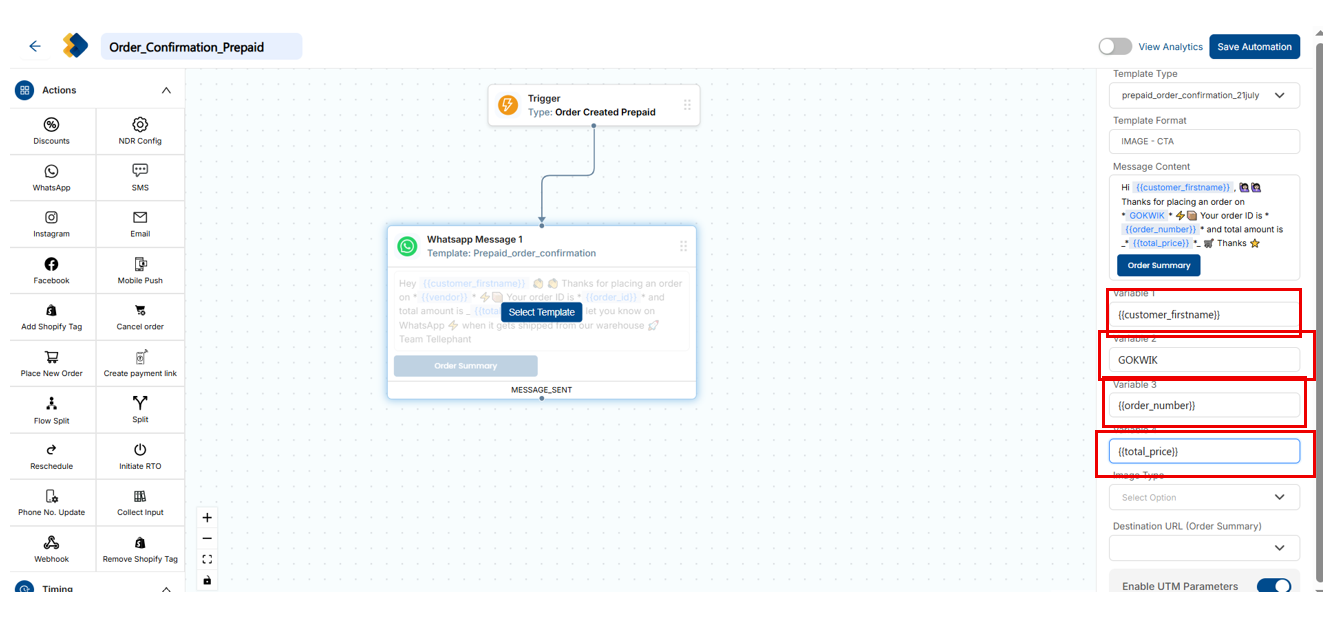

B. Prepaid Order Confirmation

Steps:

1. Go to Flows > Create Flow

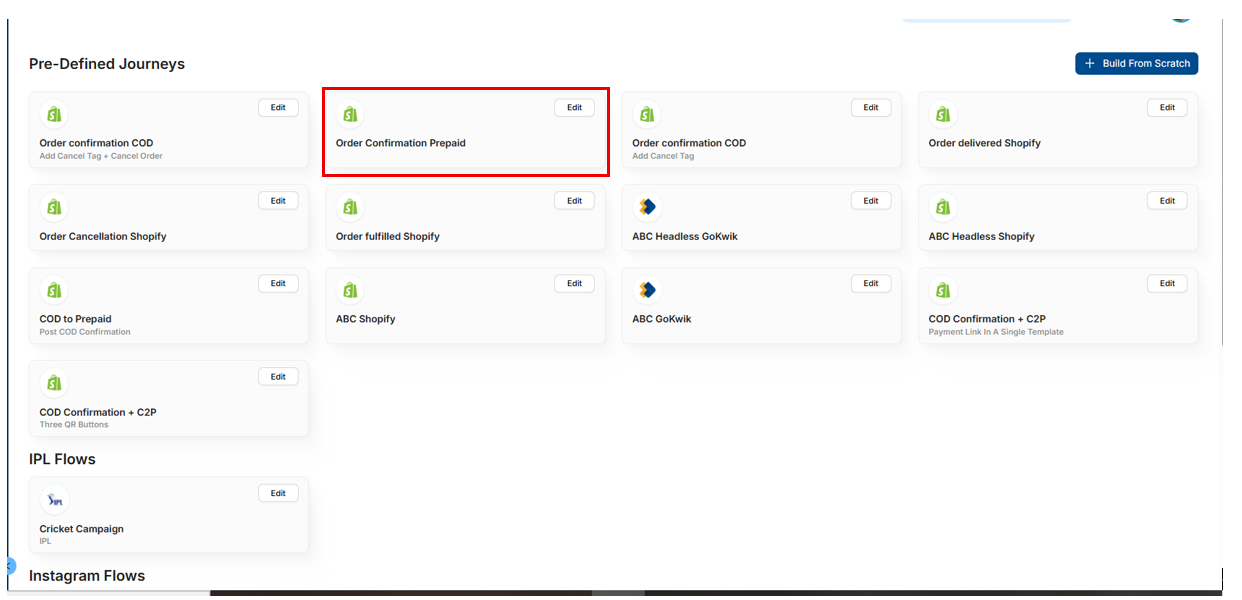

2. Select the 2nd flow: "Order Confirmation Prepaid"

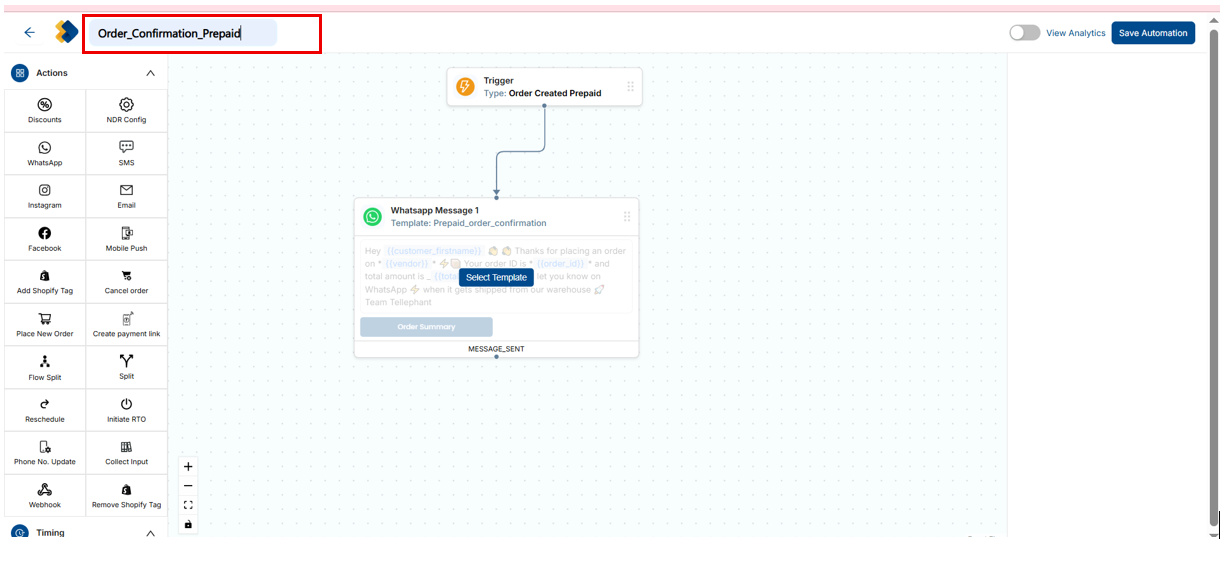

3. Set a flow name

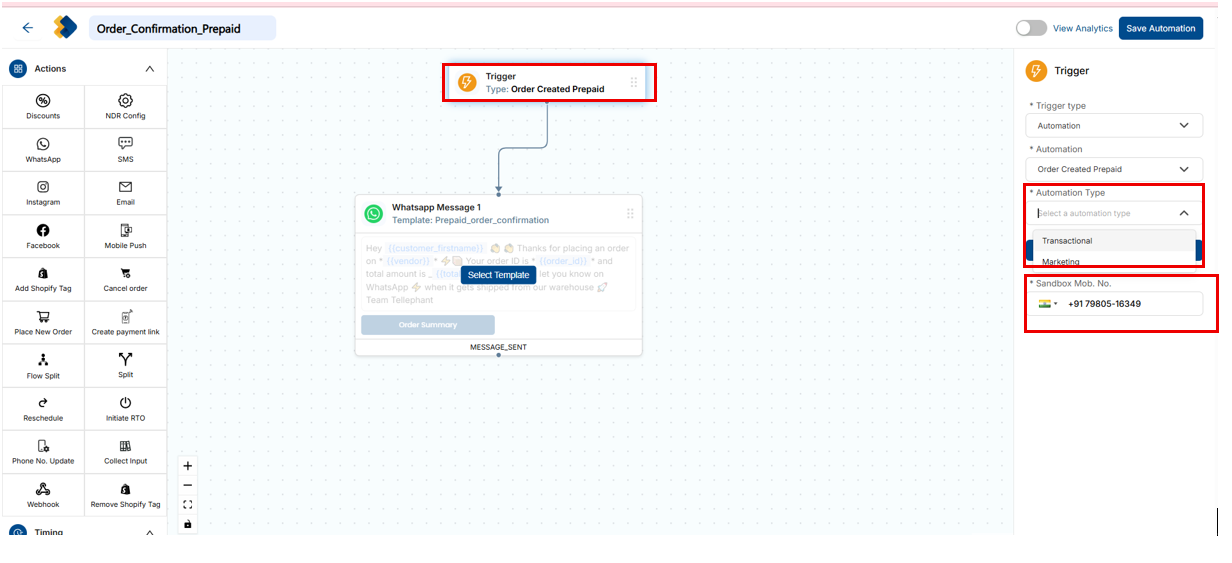

4. In the Trigger block:

   • Choose automation type: Transactional

   • Add a test number


5. (Optional) Add a Time Delay or Breaker

6. In the WhatsApp block:

   • Add an approved prepaid order template

   • Fill in variables like Customer_name, Order_number

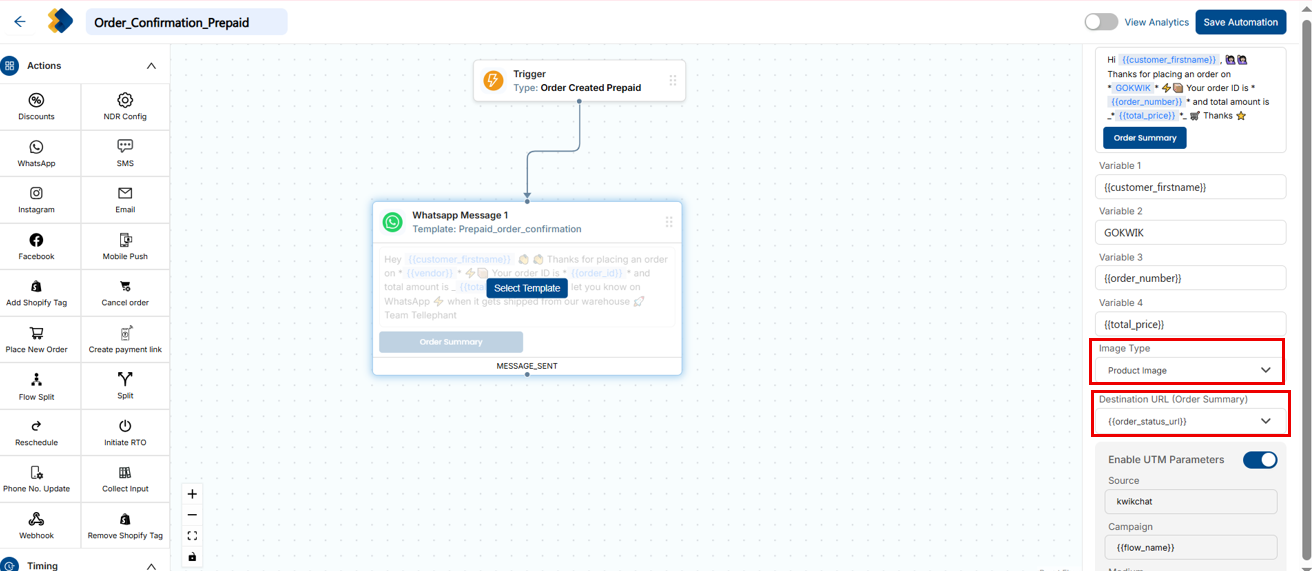

   • For the Order Summary button, use {{order_status_url}}

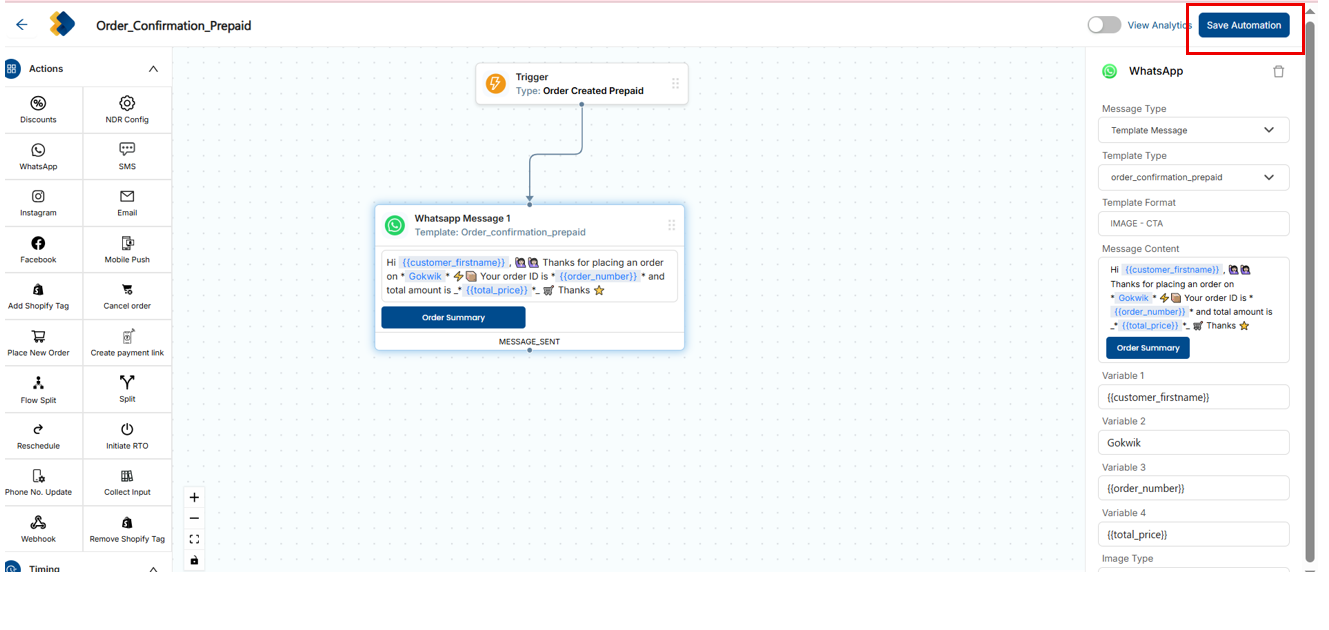

7. Save the block and then click Save Automation

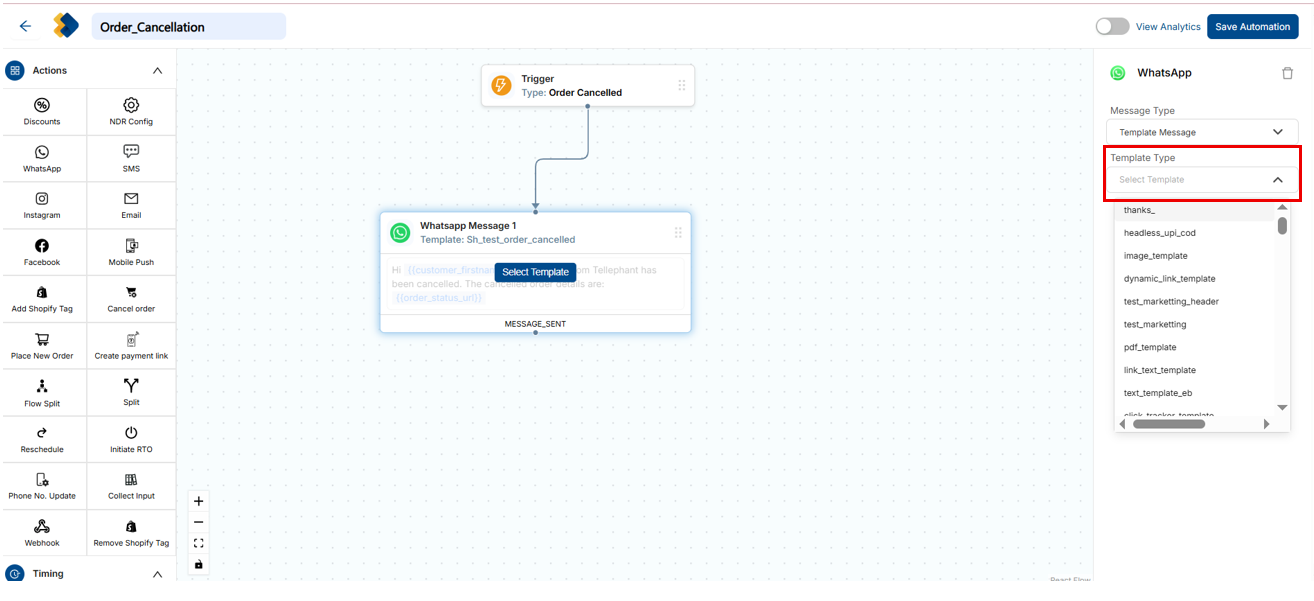

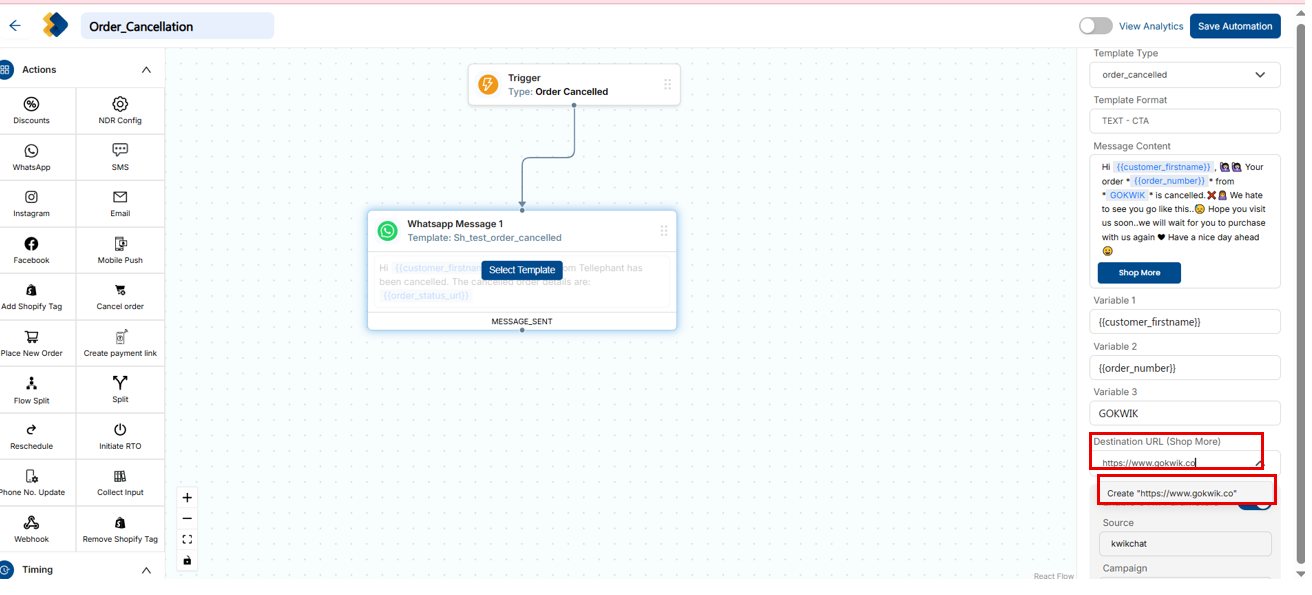

C. Order Cancellation

Steps:

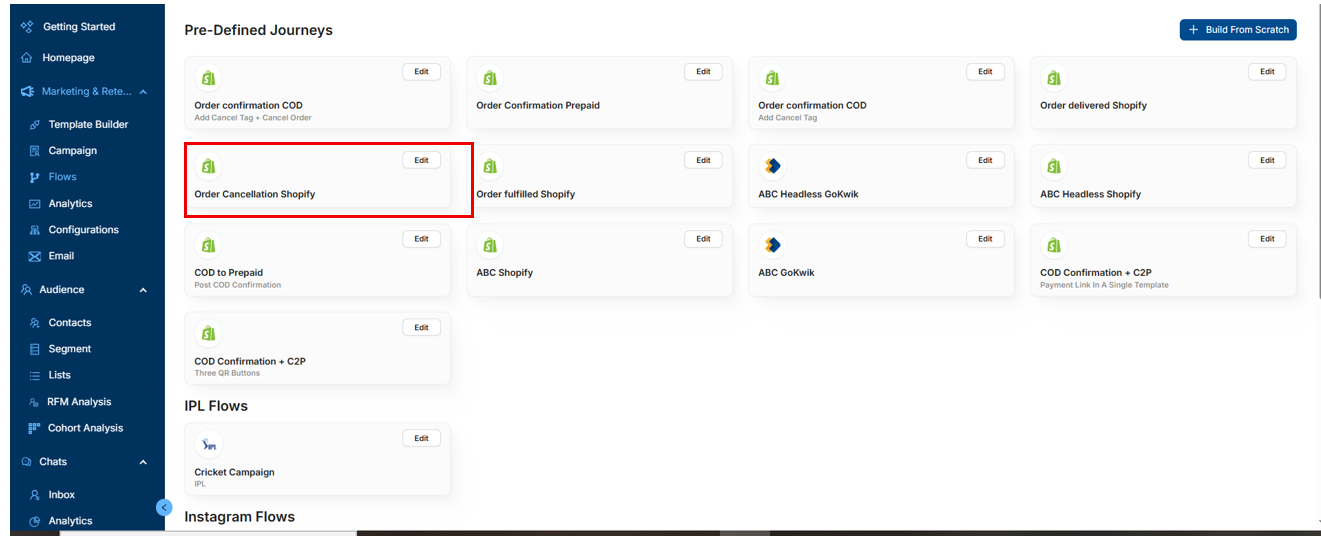

1. Select the 5th flow: "Order Cancellation Shopify"


2. Setup like previous flows

3. Use an approved cancellation template


4. For CTA (Shop More), paste your website URL

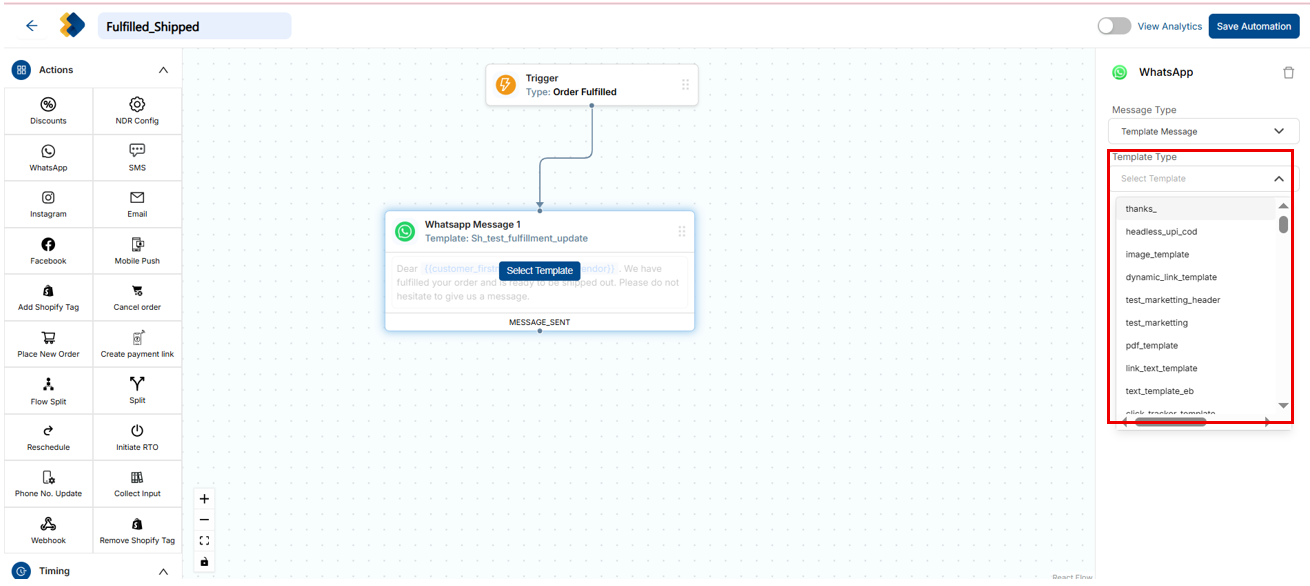

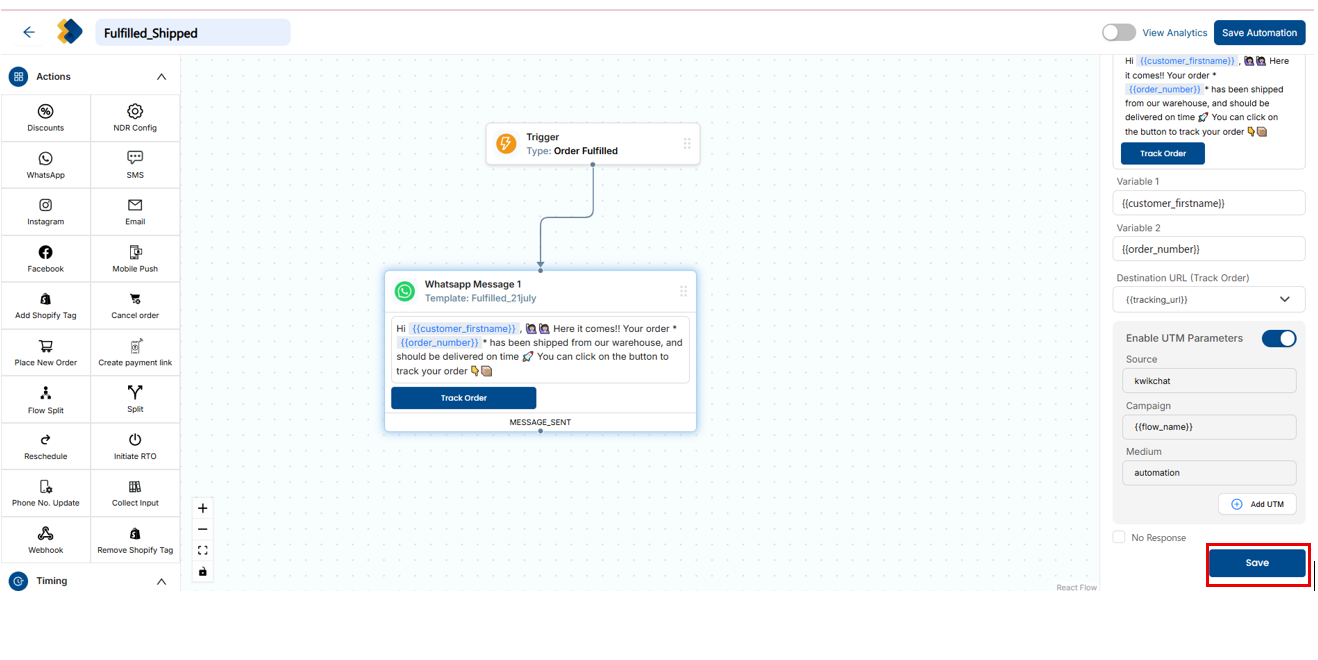

D. Order Fulfilled / Shipped

Steps:

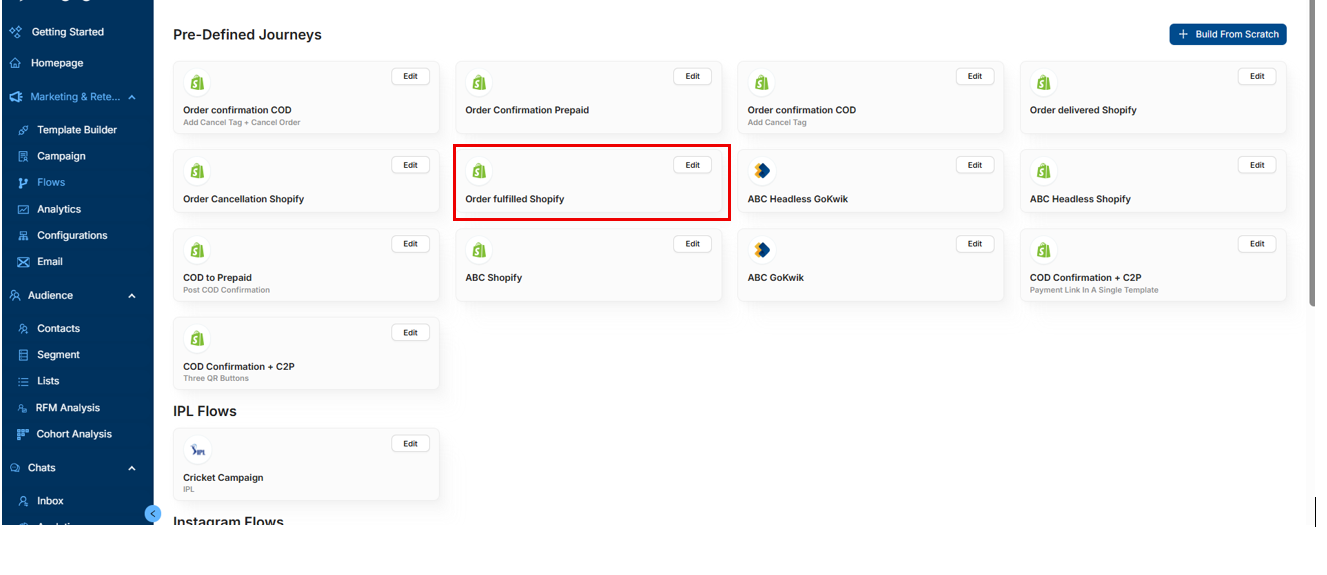

1. Select the 6th flow: "Order Fulfilled Shopify"


2. Use an Order Fulfilled template


3. Add tracking variables

4. CTA: use {{tracking_url}}

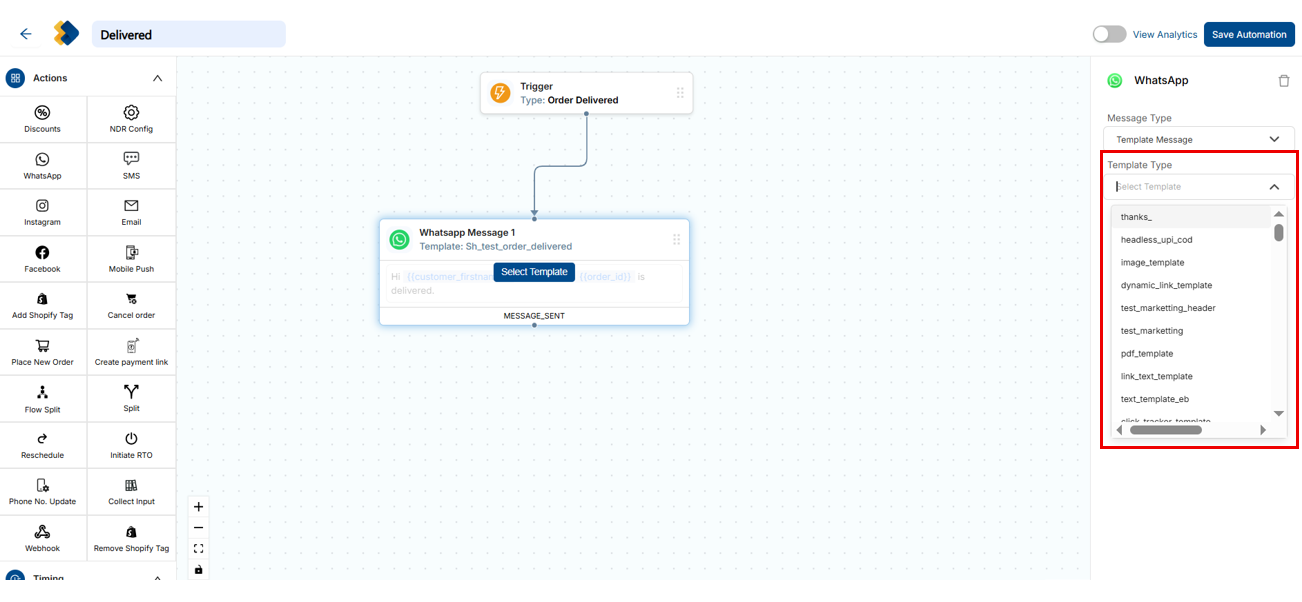

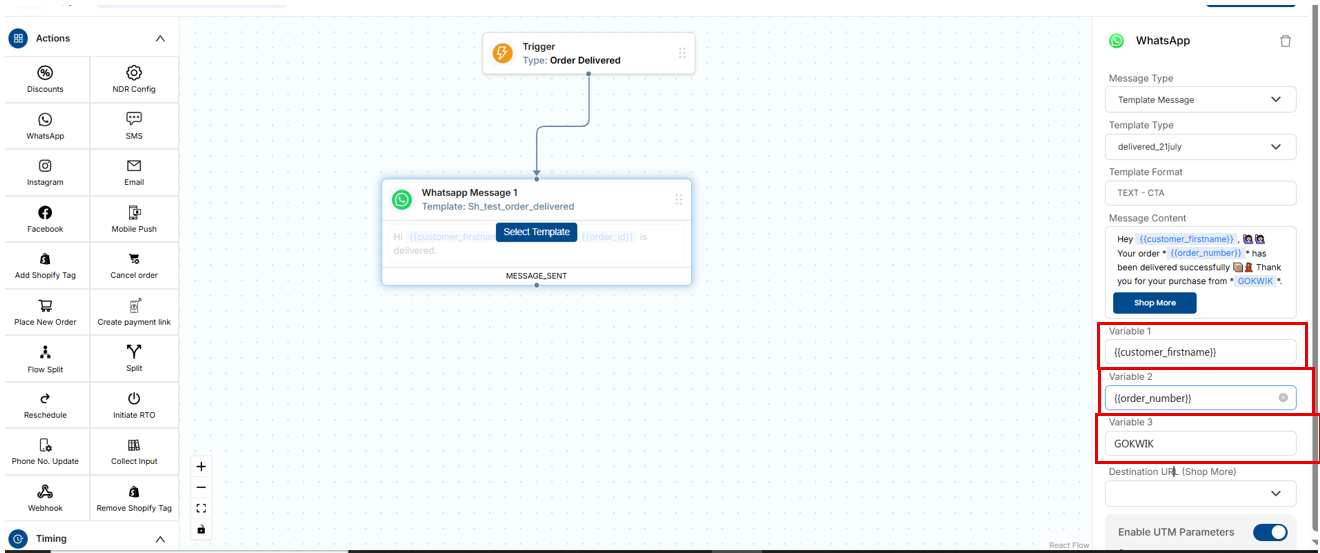

E. Order Delivered

Steps:

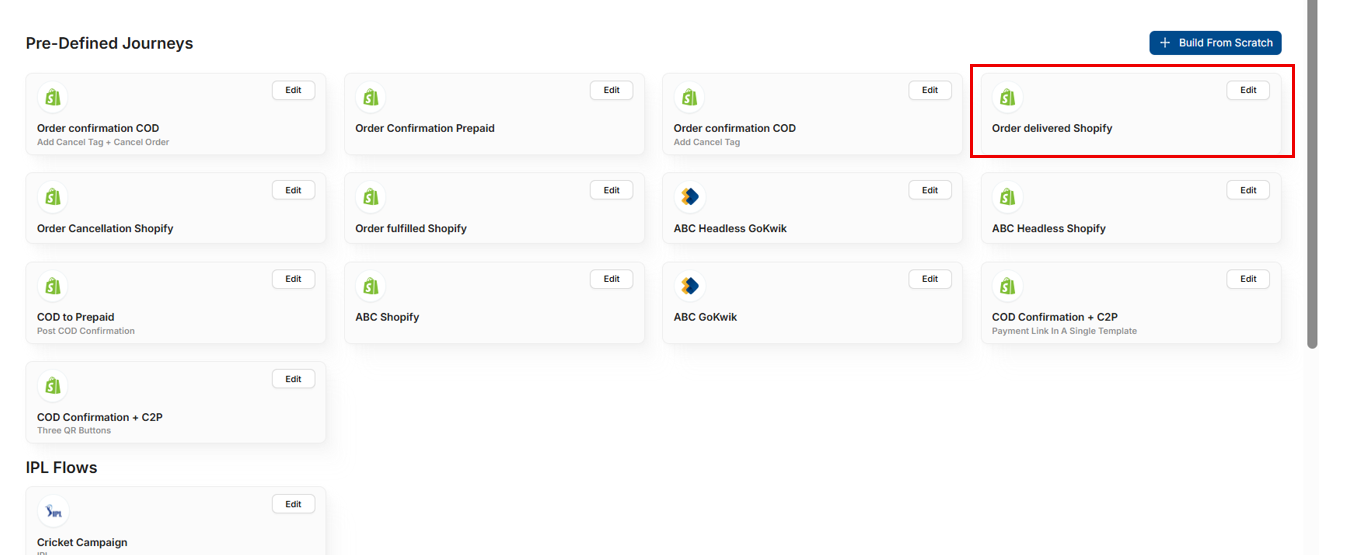

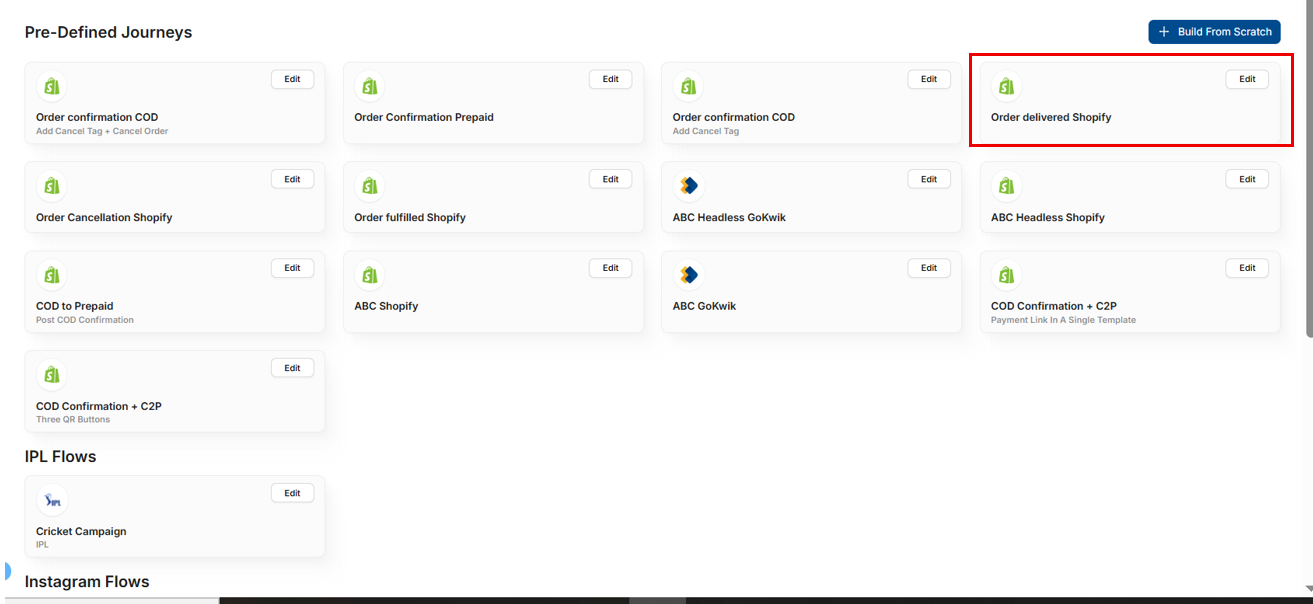

1. Choose the 4th flow: "Order Delivered Shopify"


2. Add a delivery template


3. For the Shop More button, add your website link

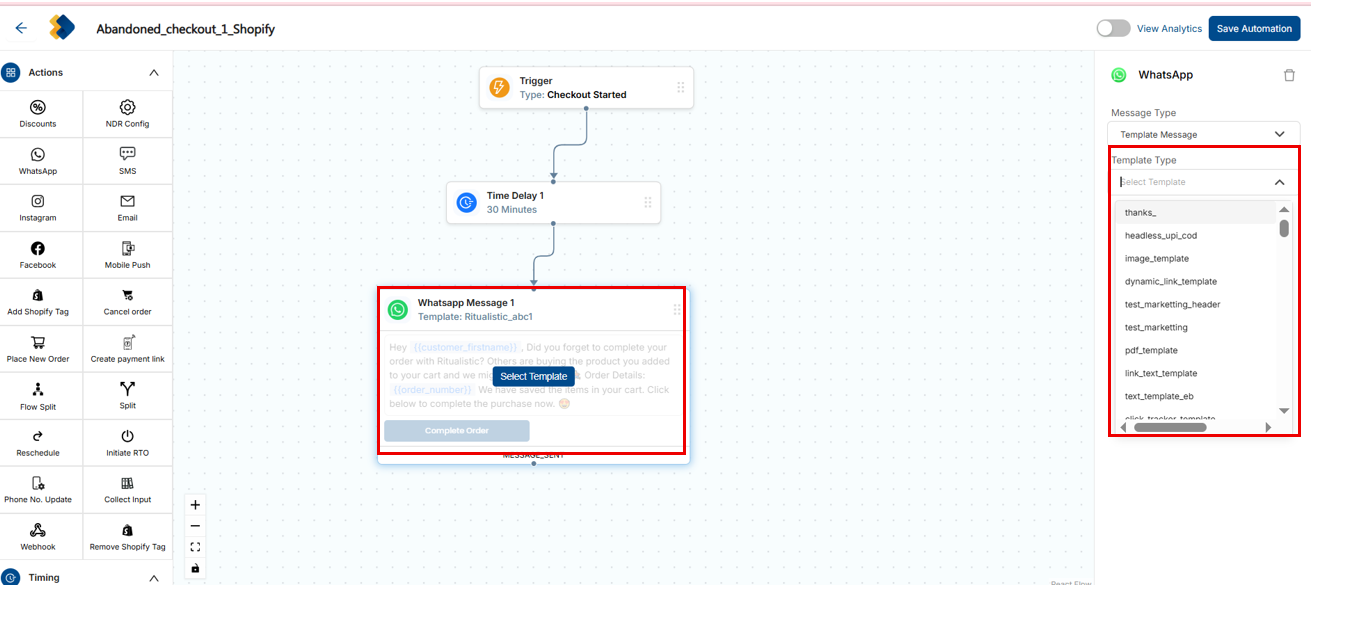

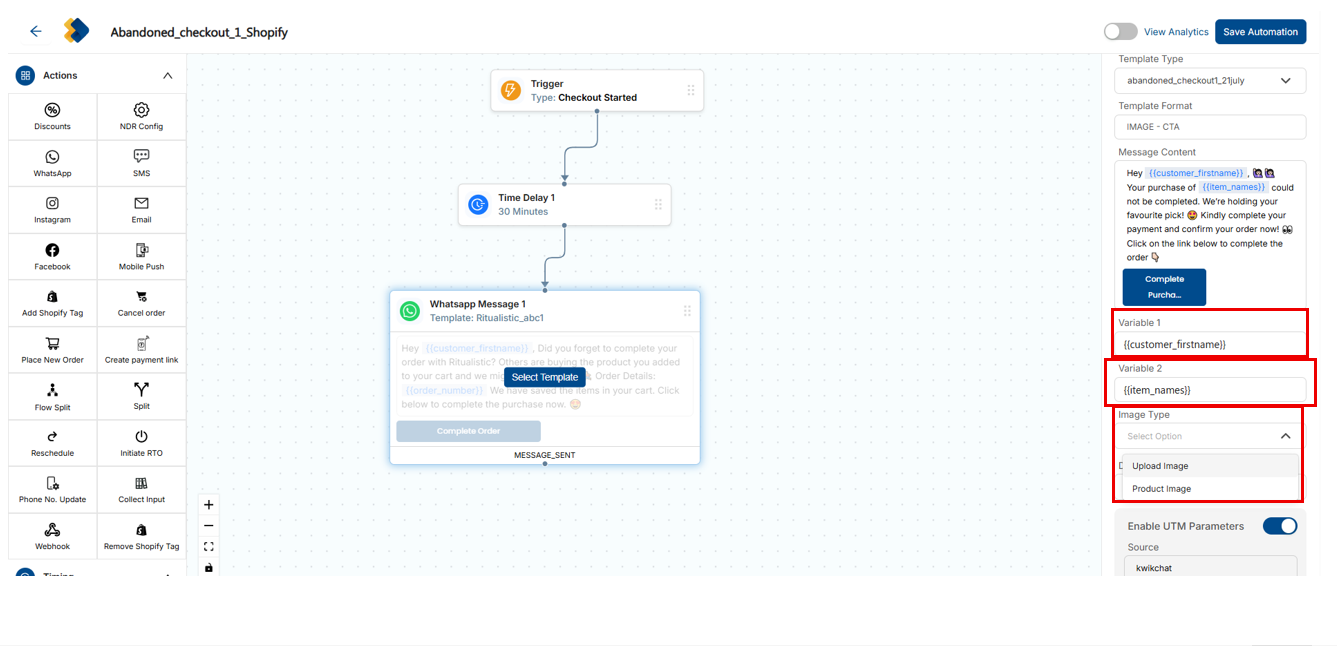

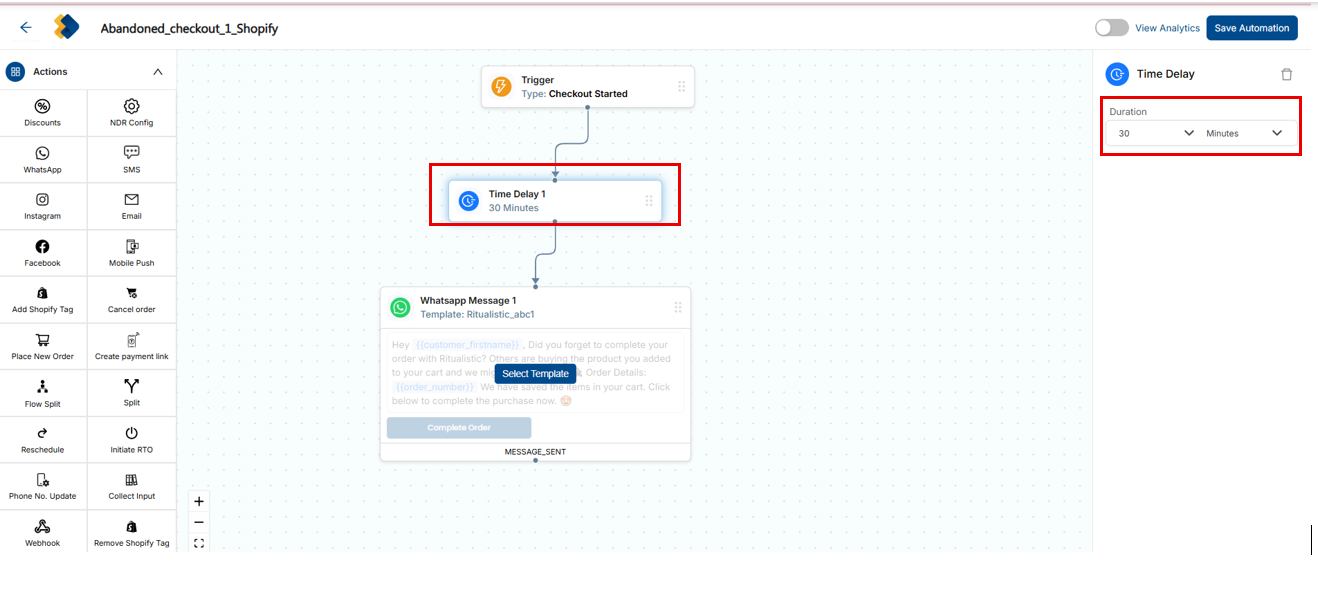

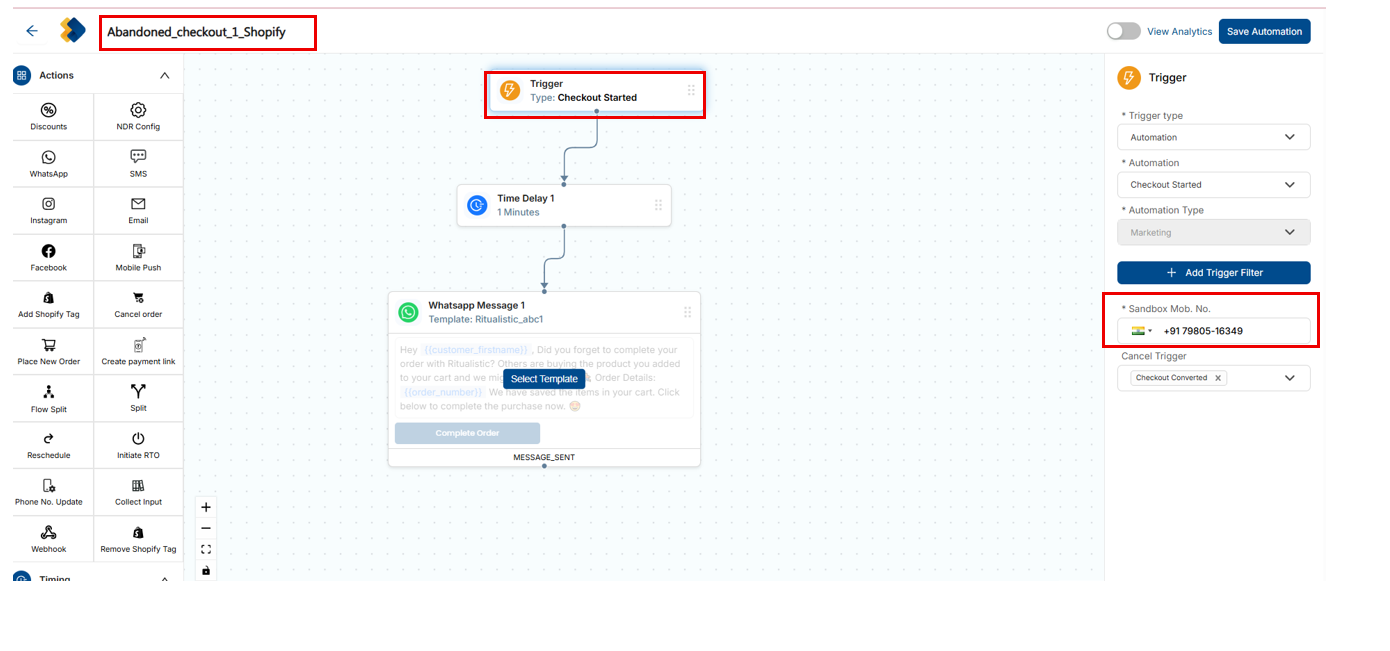

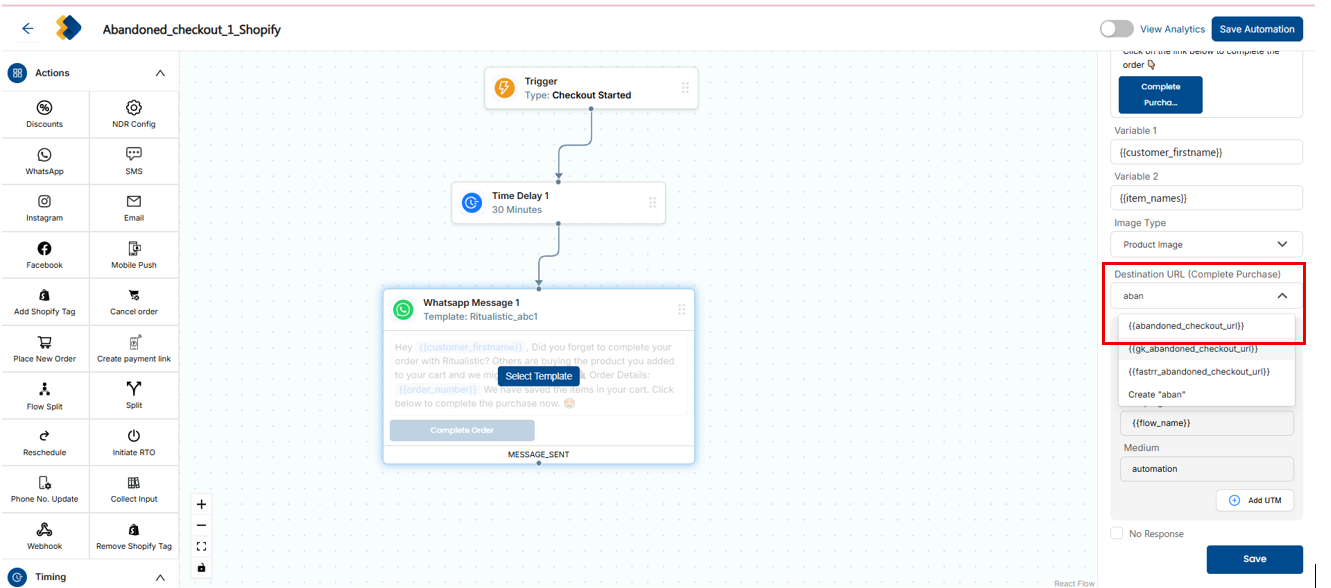

F. Abandoned Checkout – Shopify (No Discount)

Steps:

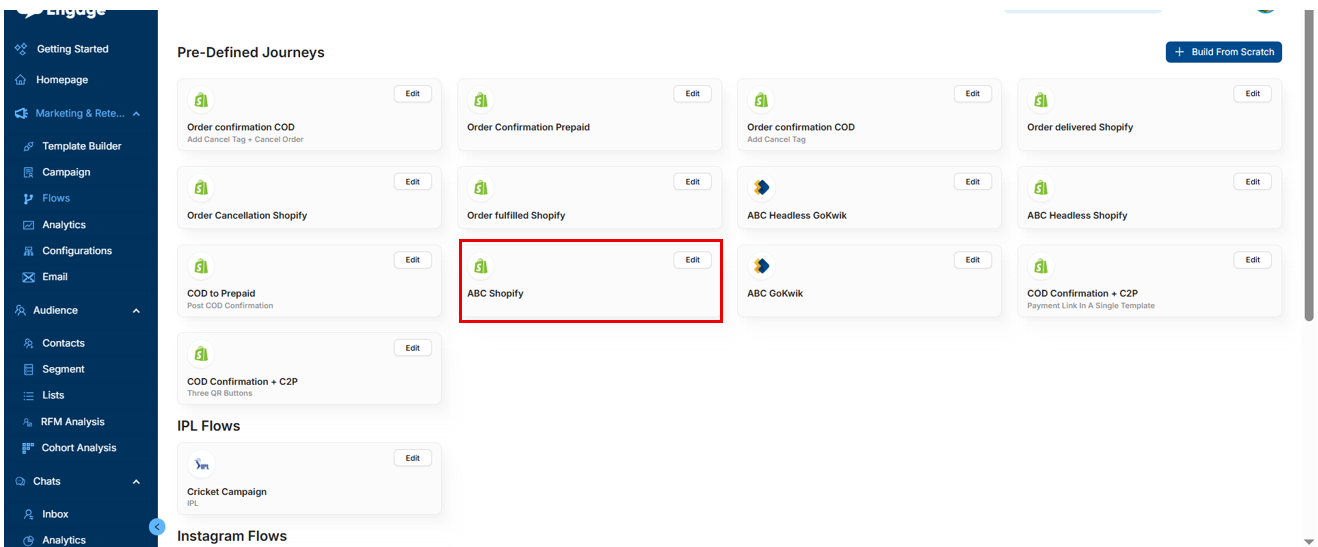

1. Select the 10th flow: "ABC Shopify"


2. Set automation type to Marketing



3. Add an abandoned cart template



4. CTA: {{abandoned_checkout_url}}

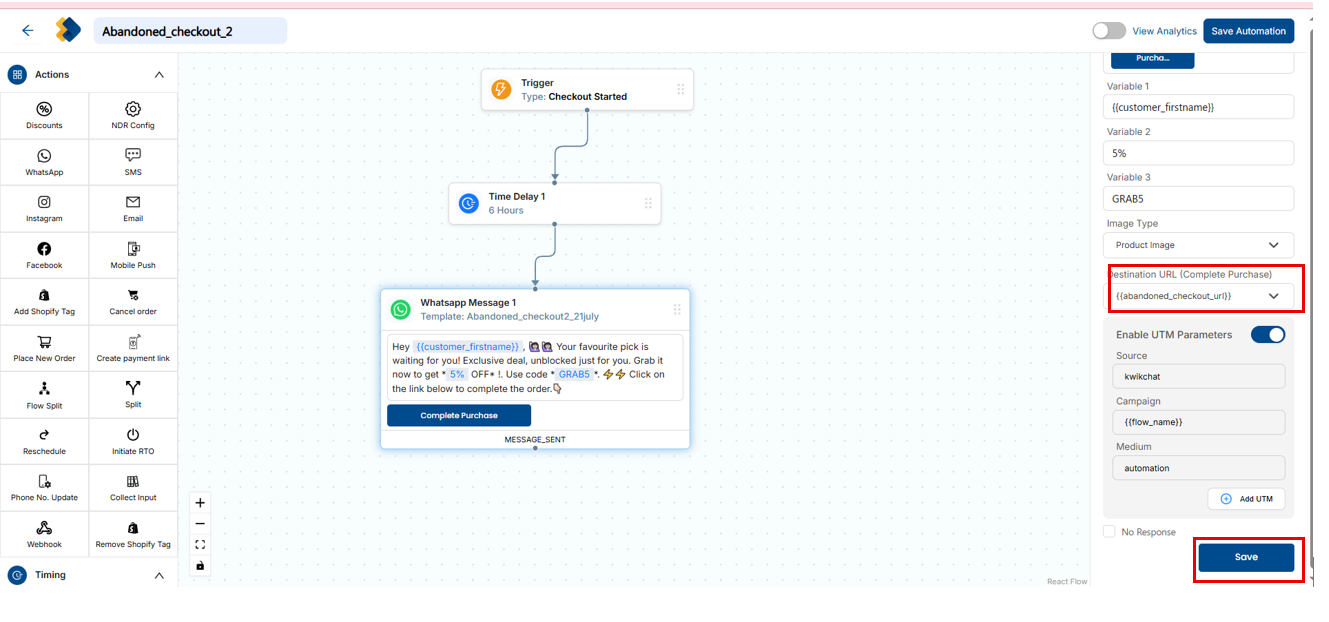

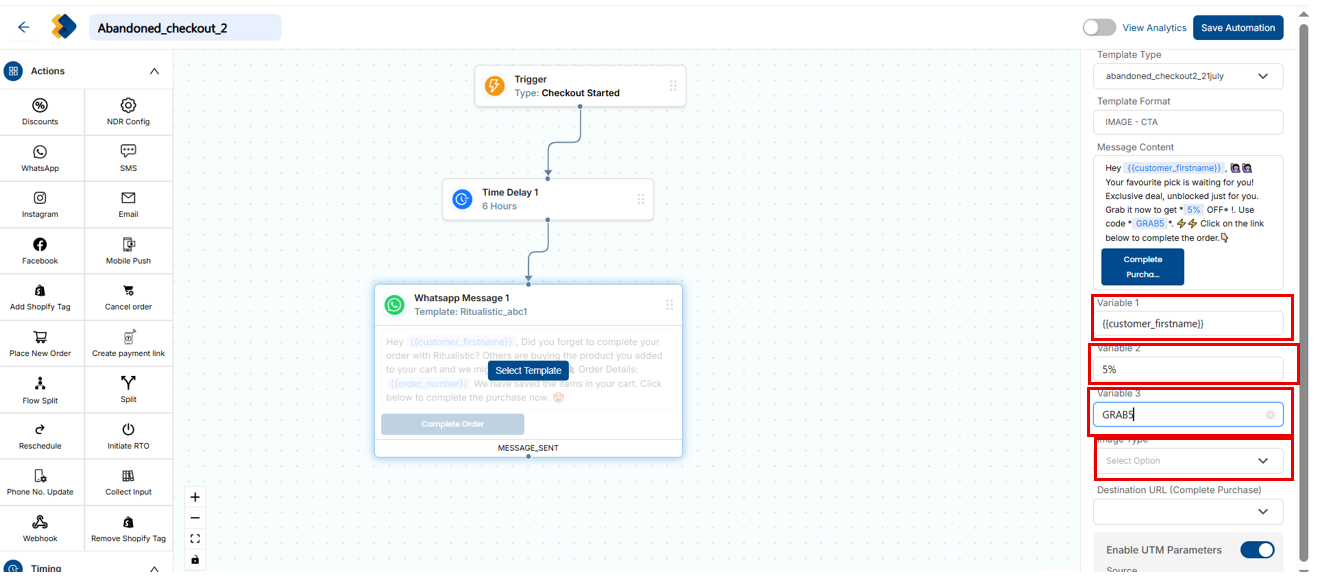

G. Abandoned Checkout – Shopify (With Discount)

Same steps as above, but:

• Add discount-related variables: discount_code, discount_value


• Use the same CTA: {{abandoned_checkout_url}}

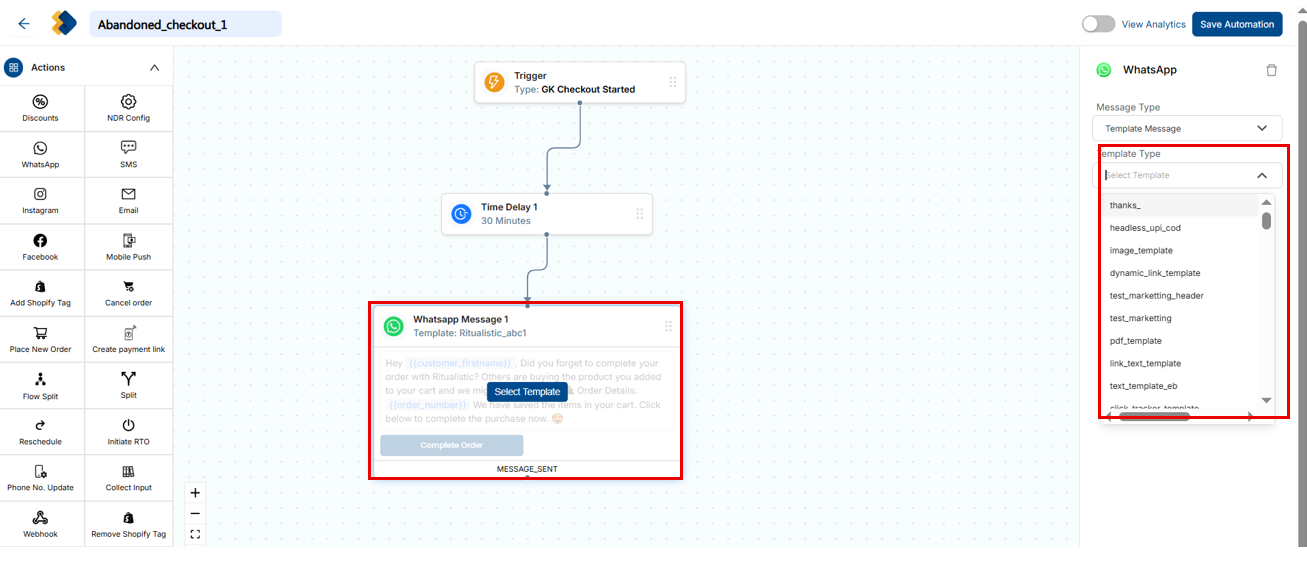

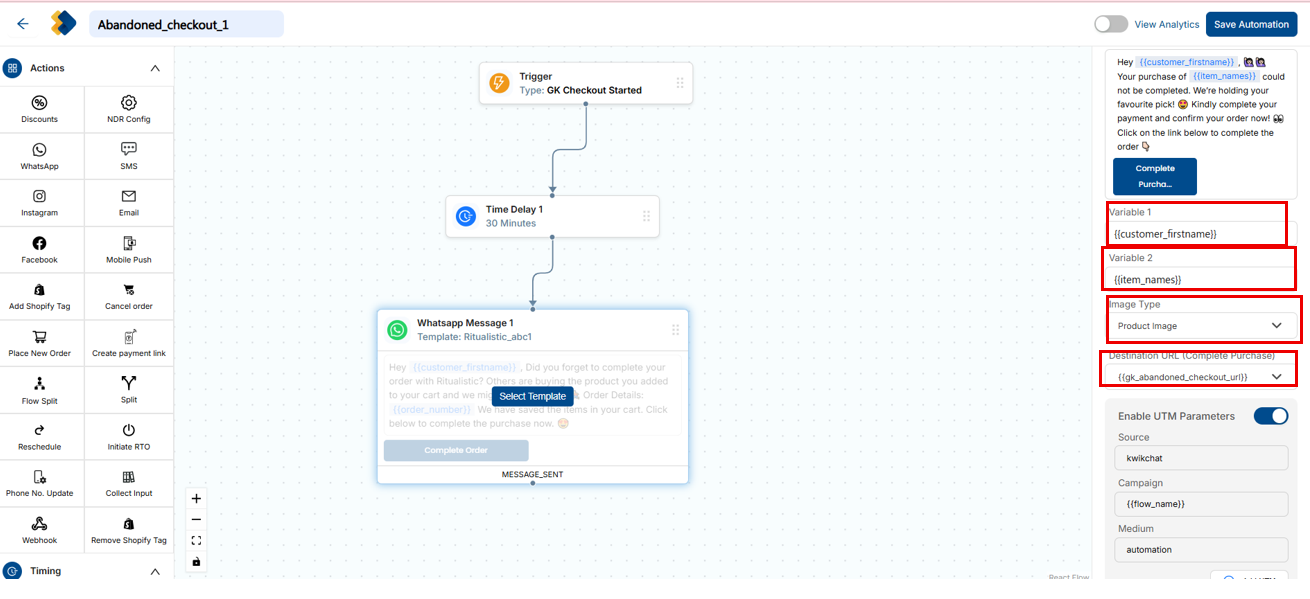

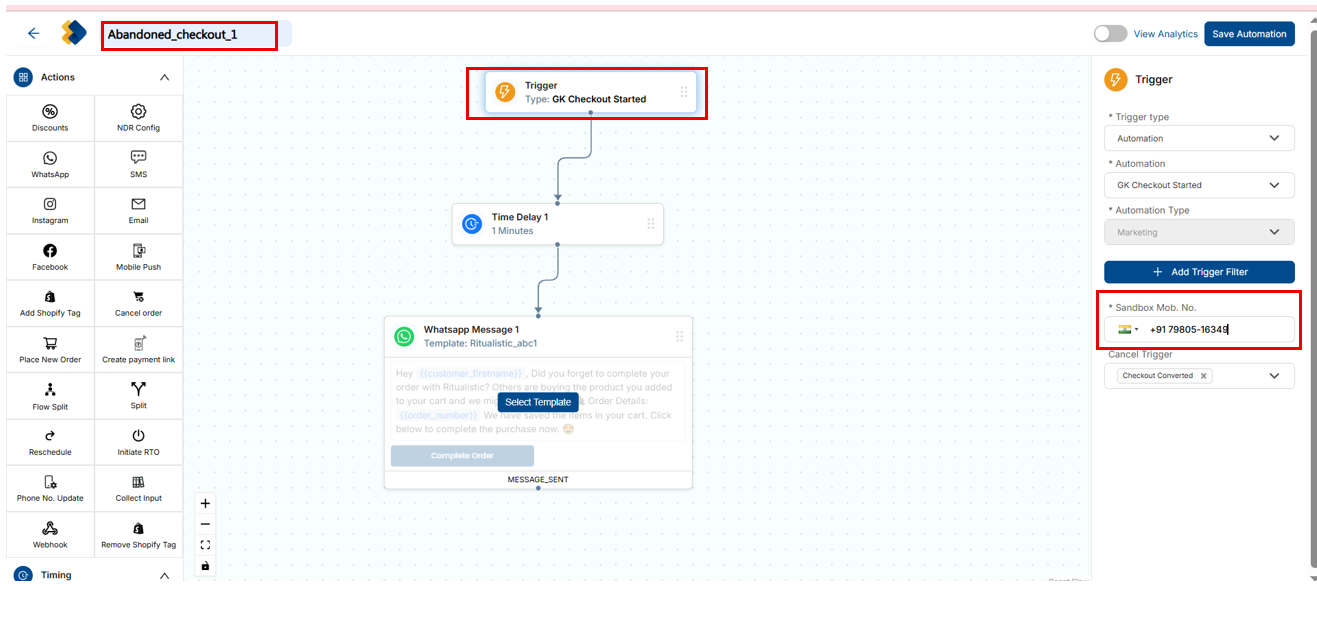

H. Abandoned Checkout – GoKwik (No Discount)

Steps:

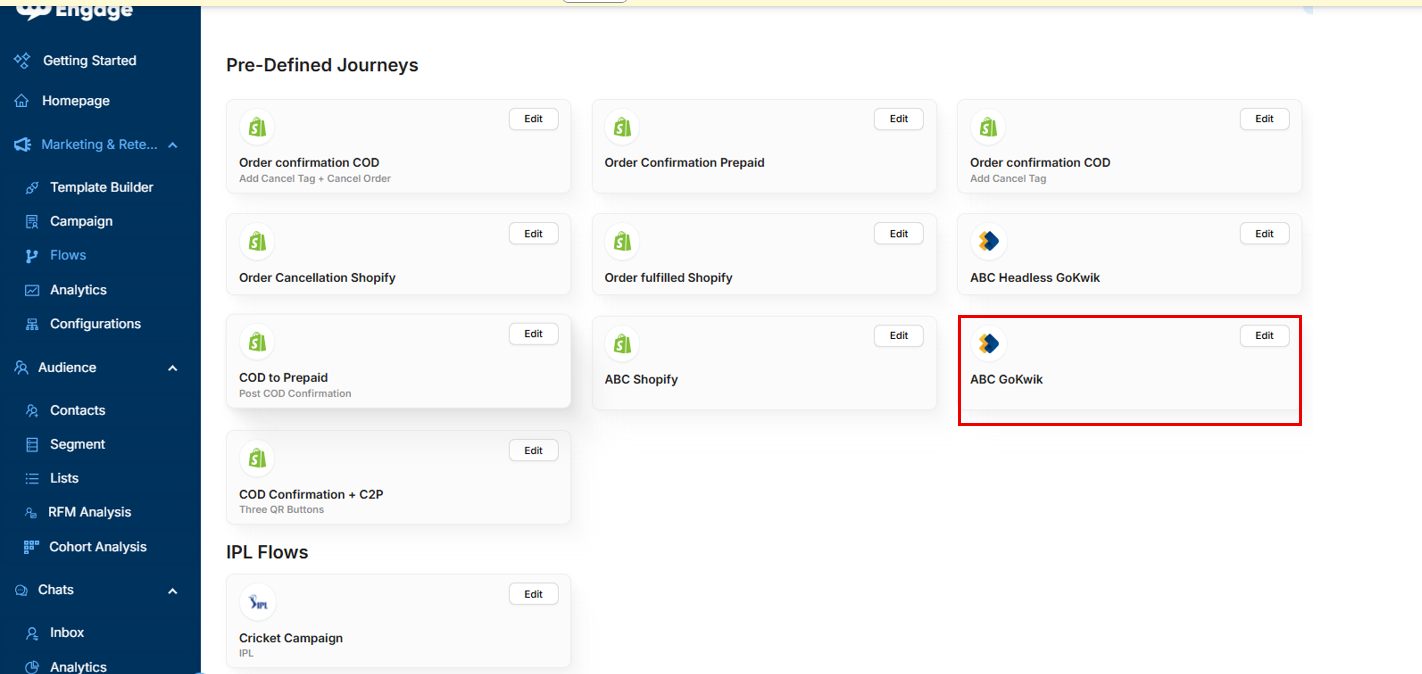

1. Select the 11th flow: "ABC Gokwik"


2. Set automation type to Marketing



3. Use an approved GoKwik template


4. CTA: {{gk_abandoned_checkout_url}}

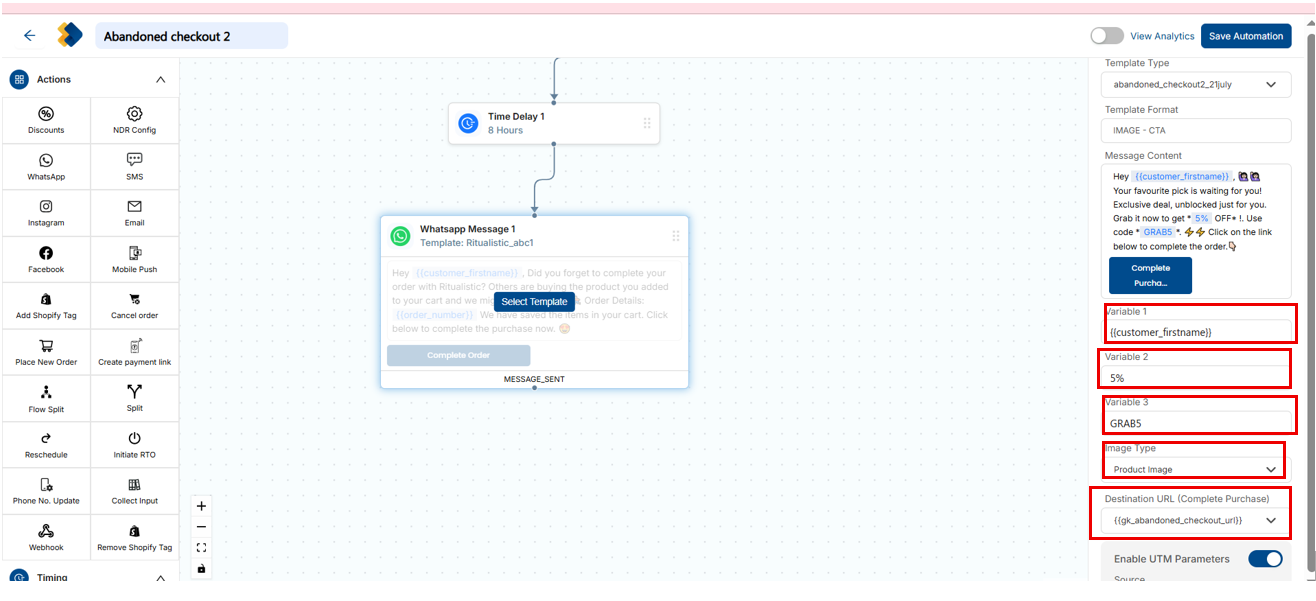

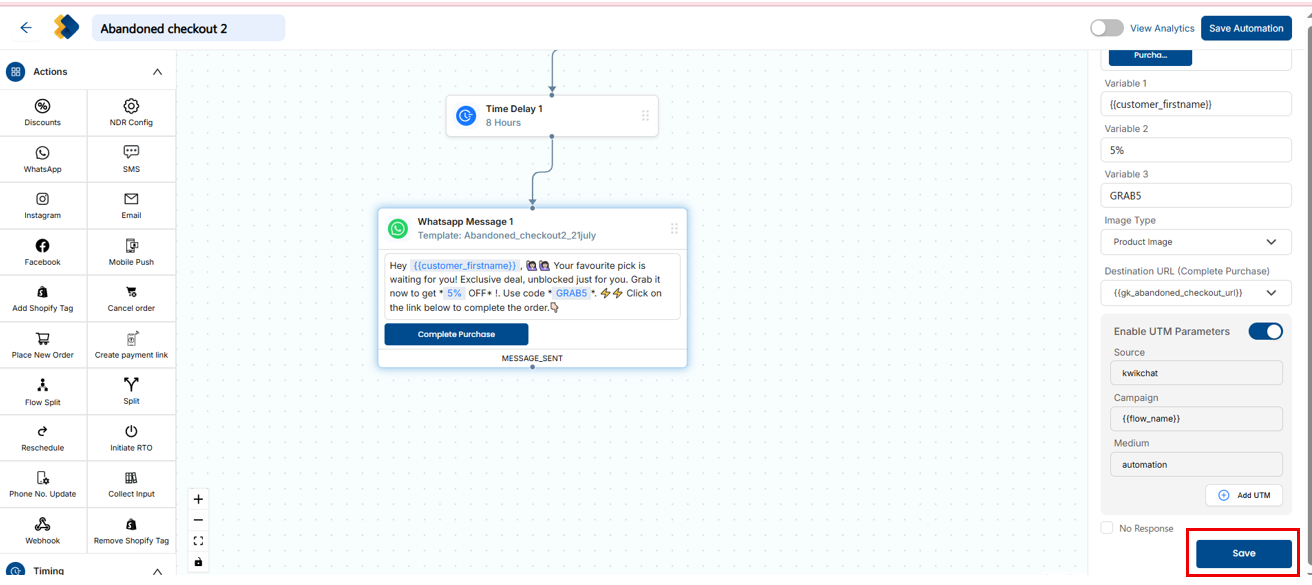

I. Abandoned Checkout – GoKwik (With Discount)

Same as above, with additional discount variables:

• discount_code, discount_value


• CTA remains {{gk_abandoned_checkout_url}}

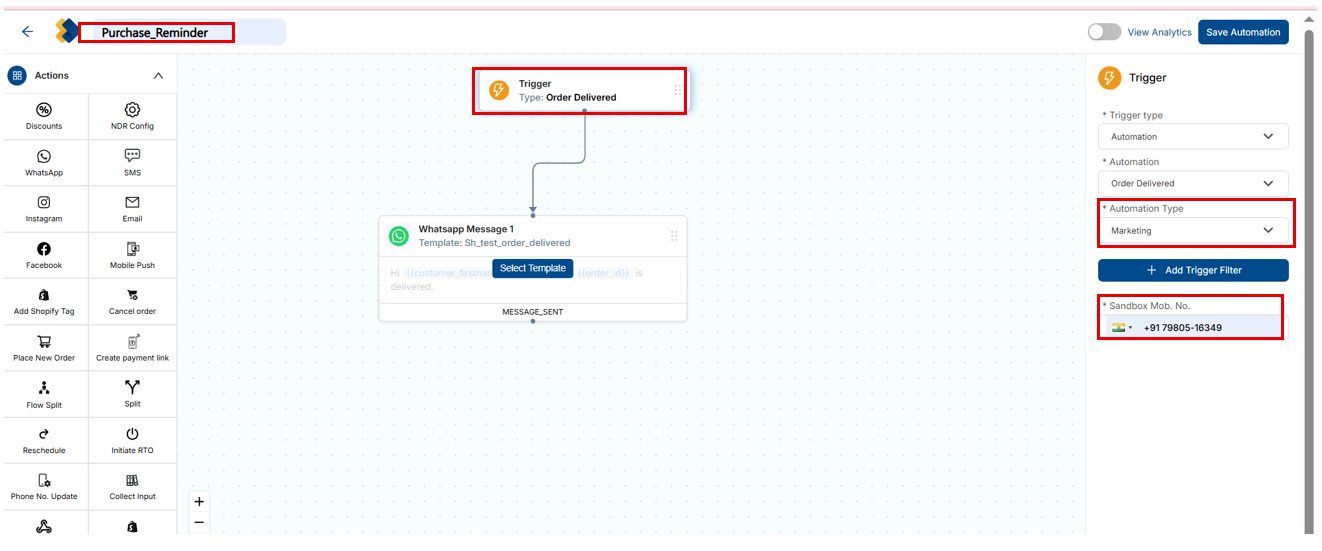

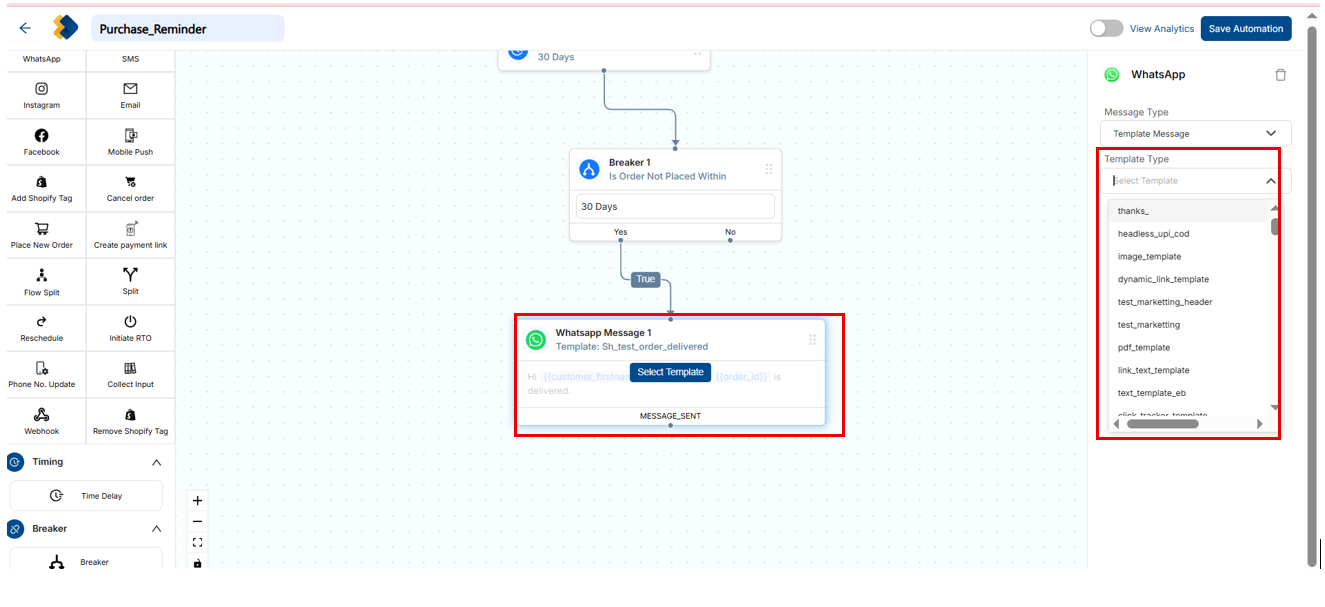

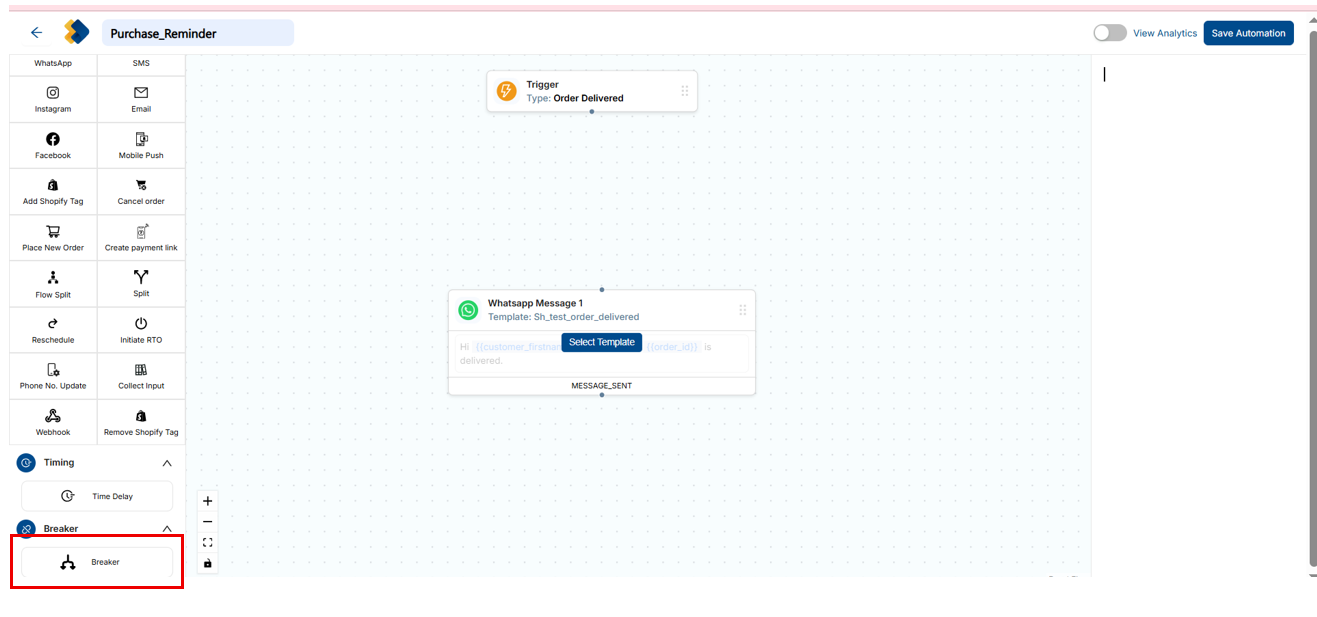

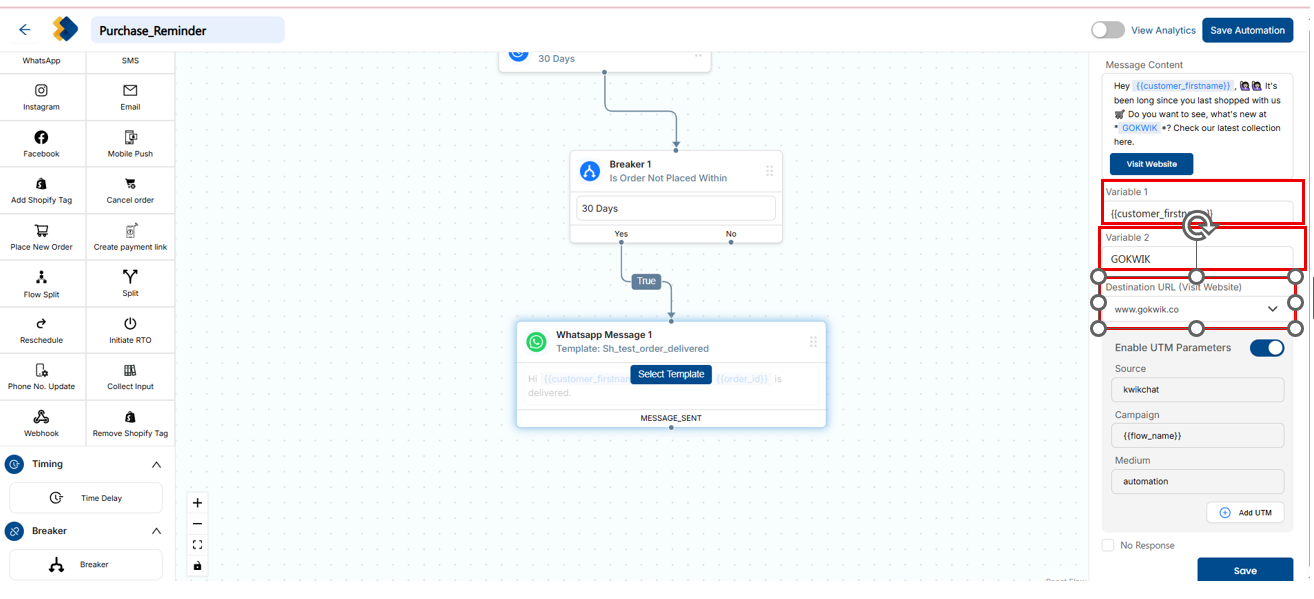

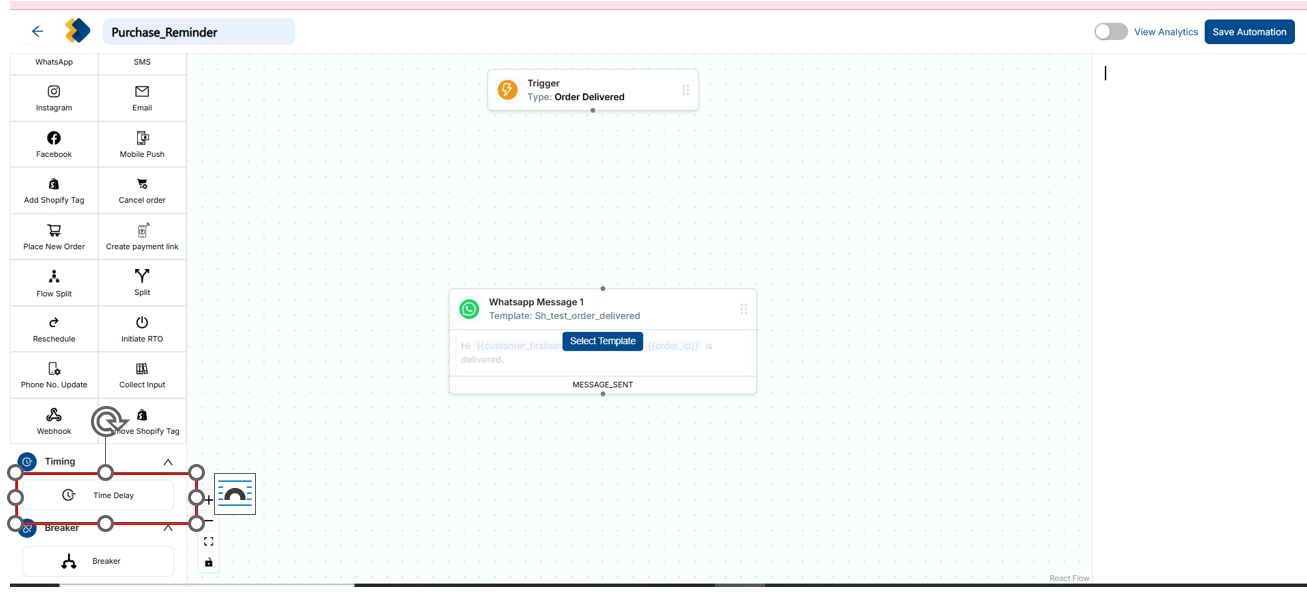

J. Purchase Reminder / Retargeting

Steps:

1. Select the 4th flow: "Order Delivered Shopify"


2. Add a Time Delay and Breaker between the Trigger and WhatsApp blocks



3. Set automation type to Marketing


4. Use a Purchase Reminder template



5. CTA: Add your website link (e.g., Visit Now button)

Flow Status Explained:
